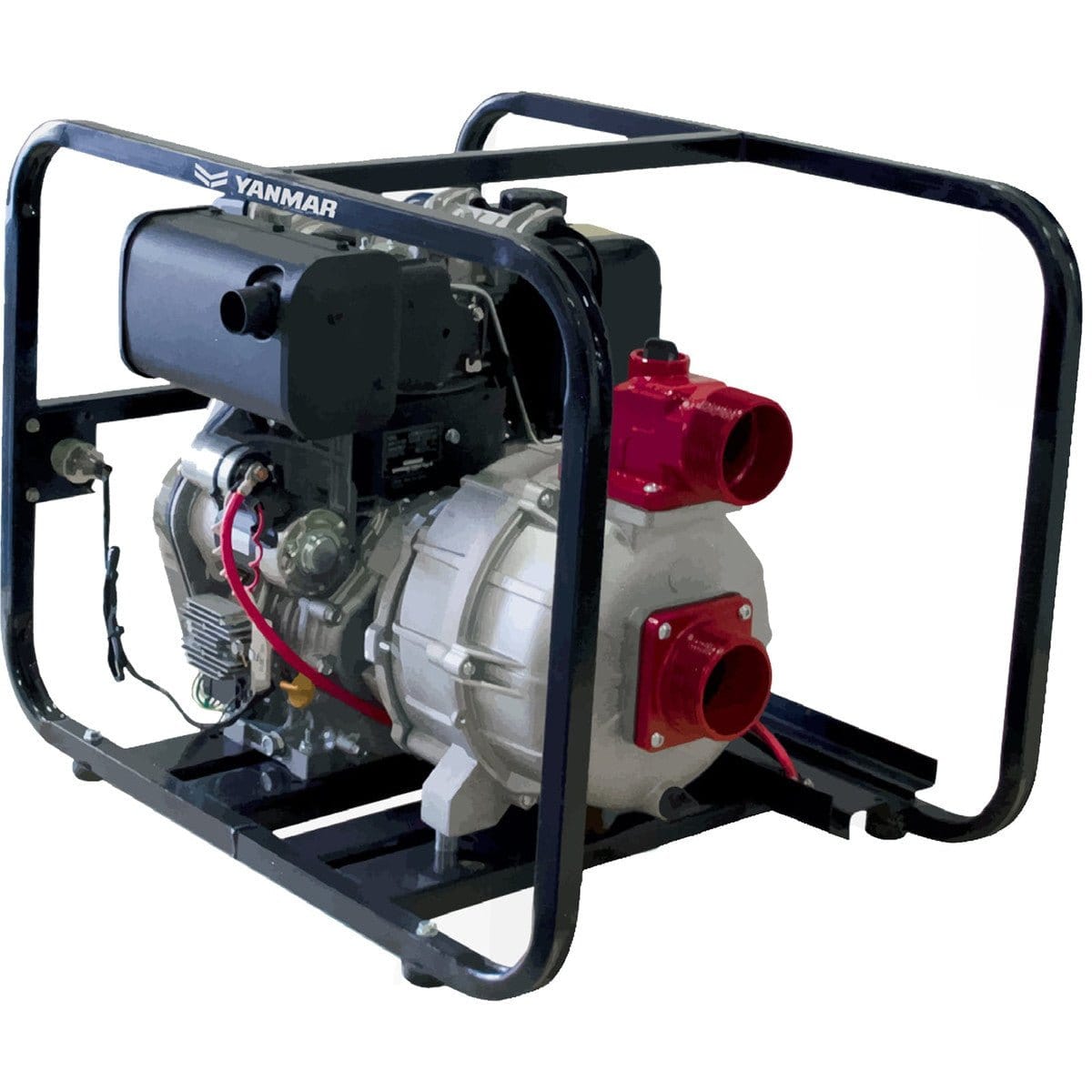

Name: YANMAR Diesel Pump - YDP40TW-E4 -Trash Pump
Brand: Yanmar
SKU: YDP40TW-E4
Price: 4799.00 EUR
Availability: InStock

YANMAR Diesel Pump - YDP40TW-E4 -Trash Pump

€4.799,00 €6.299,00

YANMAR Diesel-powered, portable, high-volume, self-priming trash pumps come standard with a cast iron impeller to resist abrasion. They feature one tool serviceability for easy cleanout. All pumps feature an aluminum housing, cast iron wear parts, a built-in check valve, a suction strainer, and a painted heavy-duty steel roll frame. The pumps also feature heavy-duty cast iron flanges with male NPT threads. The flanges can be rotated in 90-degree increments and come with an easy-access fill plug on the discharge.

Discover the power and reliability of the YANMAR YDP40TW-E4 Trash Pump. From the trusted brand Yanmar, this model is sure to exceed your expectations and tackle any job with ease. Don't settle for anything less than the best - choose the YDP40TW-E4 for all your pumping needs!

DETAILS

A WIDE OPTION

YANMAR’s pump series range in bore size from 2“ to 4“ for fresh water, semi-trash, trash, and diaphragm models. The series can handle all types of water, from fresh to muddy sludge.

LONG-RUNNING, FUEL-THRIFTY DIESELS

Fuel-efficient diesel pumps can be operated 1.5-4 times longer than gasoline pumps. This advantage truly shows in night time and other continuous pumping operation at sites where no commercial power is available.

DURABLE CONSTRUCTION

The principal parts of each pump are reinforced for superior wear resistance. The trash pumps are further strengthened by adding liners to the inner casings.

EASY MAINTENANCE

Cleaning the inside of the casing can be done simply by just removing a few bolts. With trash pumps, the casing cover and the inner casing come in one block, so separation and fitting is very easy.

KEY FEATURES

Cast aluminum with cast iron wear parts
Silicon carbide / Viton mechanical seal
EPDM / EPR O-Rings
Discharge rotates in 90o increments
Easy clean out with one tool serviceability
Maximum solids handling up to 1-1/4”
Maximum flow up to 460 GPM
Maximum head up to 110 ft
Self-priming to 26 ft
Optional Wheel Kit and Hose Kit available

STANDARD FEATURES

CAST IRON IMPELLER
ONE TOOL PUMP SERVICEABILITY
SILICON CARBIDE MECHANICAL SEAL WITH GRAPHITE-IMPREGNATED SEAT AND VITON ELASTOMERS
HEAVY-DUTY STEEL ROLL FRAME AND STRAINER INCLUDED
BUILT-IN EPDM/EPR CHECK VALVE
REMOVABLE / REPLACEABLE CAST IRON SUCTION / DISCHARGE PORTS
THE DISCHARGE PORT ROTATES IN 90O INCREMENTS
VIBRATION DAMPENING FEET
MAXIMUM FLUID TEMPERATURE OF 180O F

Yanmar Diesel Trash Pump in Action:

The YANMAR Diesel Pump - YDP40TW - Trash Pump is your reliable and efficient solution for all your trash pumping needs. Its powerful diesel engine ensures quick and easy removal of debris and waste, saving you time and effort. With its strong and durable construction, it is built to withstand heavy-duty use and provide long-lasting performance. Keep your worksite clean and productive with the YANMAR Diesel Pump - YDP40TW - Trash Pump.

Specifications
