Nature’s Generator Powerhouse Hybrid Platinum PE System
Nature’s Generator Powerhouse Hybrid Platinum PE System
The Nature’s Generator Powerhouse Hybrid Platinum PE System includes the Powerhouse, four 410W Power Panels, a Powerhouse Power Transfer Switch, and one Powerhouse Eco-Lithium Power Pod. You can increase battery capacity and utilize both lithium and lead-acid batteries with this system.
- Eco-Intelligent Power Pod (Support mix used of old or new lithium, and lead-acid battery)
- 4800Wh LiFePO4 + 4800Wh SLA Battery - Infinite Expandability
- 120VAC and 240VAC up to 7200W Pure Sine Wave
- 4x 410W Mono PERC Solar Panel Set
- 1x 240VAC 6-circuit Powerhouse Transfer Kit

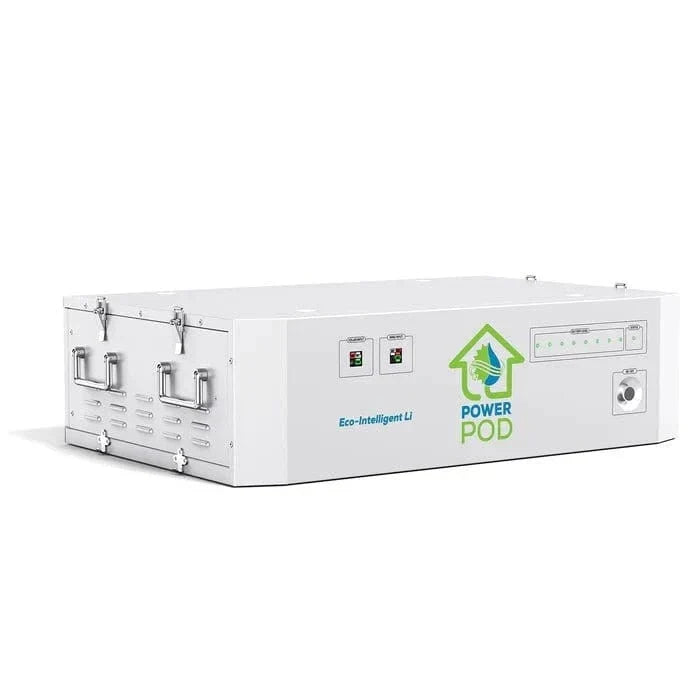

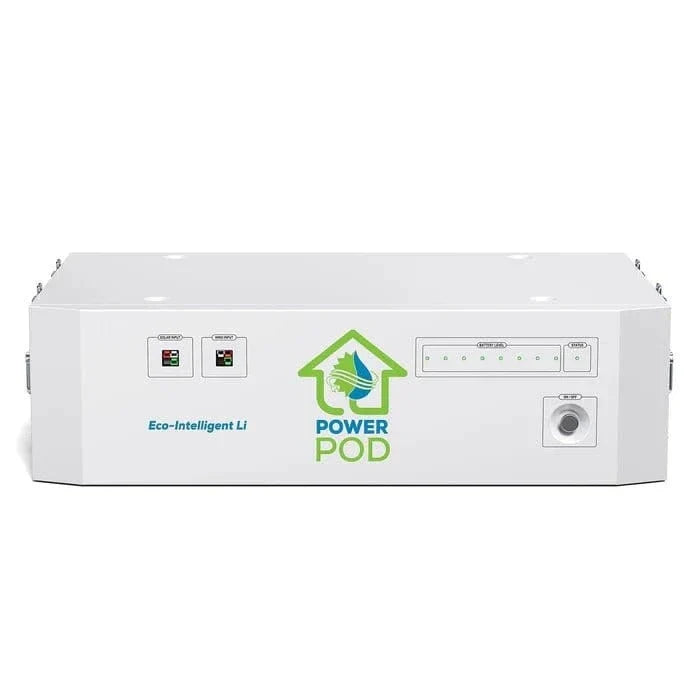

Eco-Intelligent Li
The Eco-Intelligent Li features a safe Lithium Iron Phosphate (LiFePO4) battery and a high-performance smart Battery Management System (BMS) that can combine and utilize older lithium and lead acid batteries alongside the Eco-Intelligent Li batteries. This system also boosts and manages output while protecting and enhancing battery life.
Get the best of both worlds with the Eco-Intelligent Li, a solution that extends battery life and supports a mix of both old and new lithium batteries as well as lithium and lead acid batteries. Enjoy the benefits of lighter weight and a 10-year lifespan with LiFePO4 batteries, while also taking advantage of the higher power output, high-low temperature performance, and lower cost of Lead Acid batteries. With the Eco-Intelligent Li, you can achieve real-world solutions to enhance your solar-powered generator system while saving money effortlessly.
The only Lithium Battery that works with a Lead Acid Battery
Enjoy the benefits of both Lithium and Lead Acid batteries

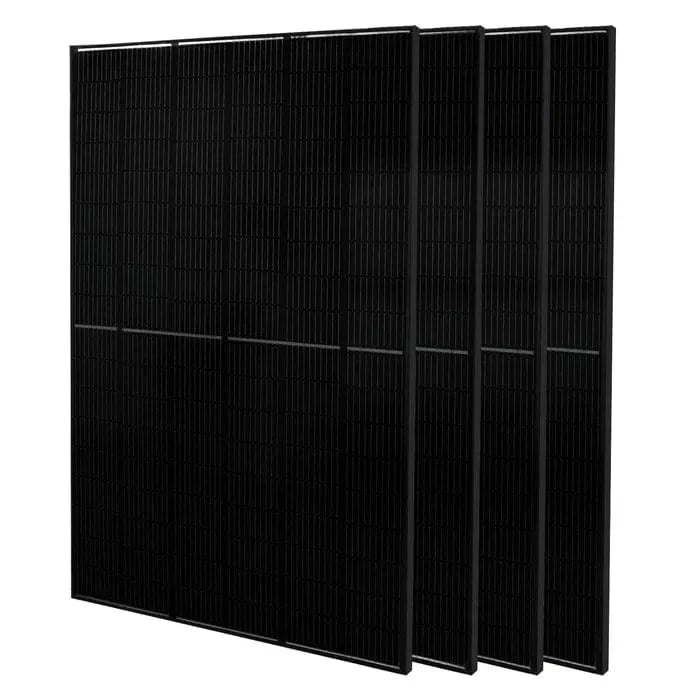

Powerhouse Power Panel
The Nature's Generator Powerhouse Power Panel use MONO PERC solar cell. A new solar cell technology that improves efficiency to harness more free energy from the sun.
Luxurious
All Black Design
The Nature's Generator Powerhouse Power Panel is a 410W all black frame and all black multi busbar solar cell adopts new technology to improve the efficiency of modules , offers a better aesthetic appearance making it perfect for rooftop installation.
High Efficiency
Low-light Performance
The New Nature's Generator Powerhouse Power Panel 410W has higher module conversion efficiency (up to 20.38%) and benefits from a half-cell structure and the advanced glass and cell surface textured design ensures excellent performance in low-light environment.
Durability Against Extreme Weather And Environmental Conditions
The Nature's Generator Powerhouse Power Panel 410W is certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal) and has a high salt mist and ammonia resistance. This solar panel is truly made for longevity.
Tech Specs and What's in the Box:

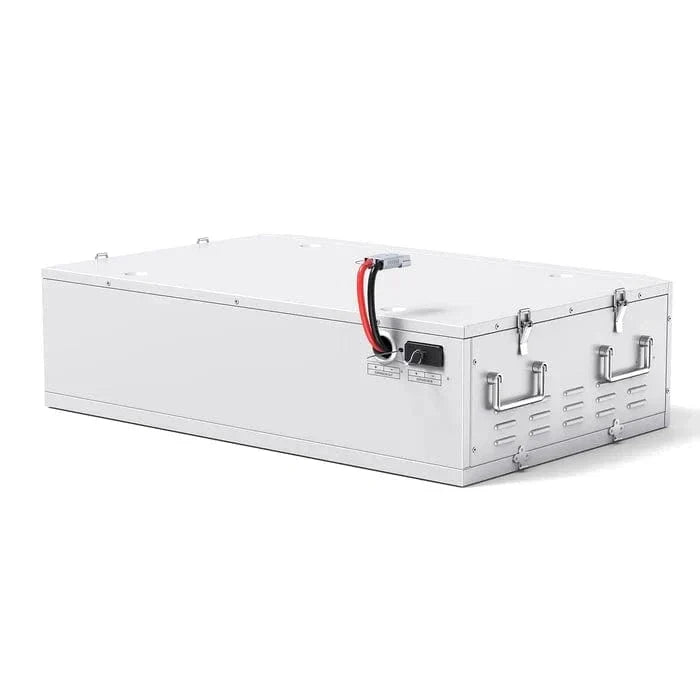

POWERHOUSE LITHIUM POWER POD:
General
Cell Type: Lithium Iron Phosphate (LiFePO4, LFP)
Rated Voltage: 48V
Rated Capacity: 100Ah
Life Cycle: 6,000+ (80% Depth of Discharge)
Designed Life: 10 years
Dimensions

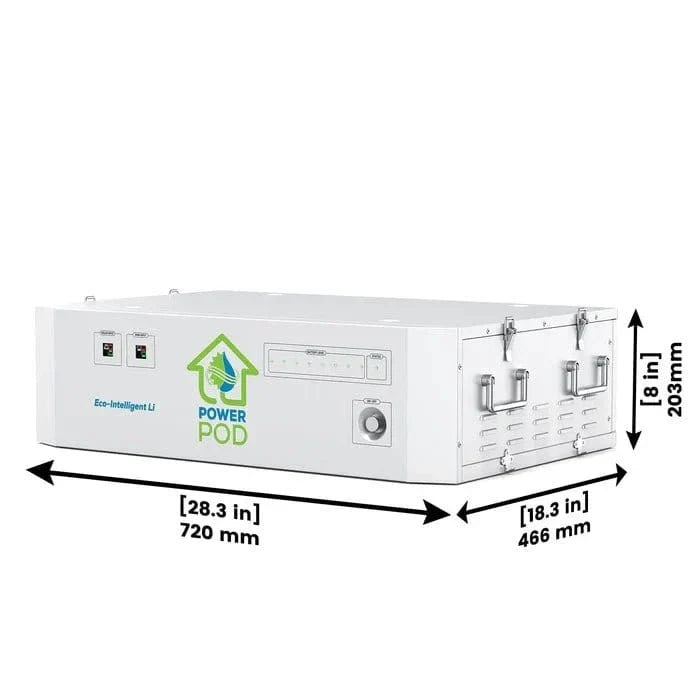

Dimensions [W*D*H]: 28.3 x 18.3 x 8.0 inches (720*466*200mm)
Temperature
Working Temperature (Charge): 32 ~ 113 ºF (0~45 ºC)
Working Temperature (Discharge): 14 ~ 113 ºF (-10~45 ºC)
Storage Temperature: 32 ~ 104 ºF (0~40 ºC)
Protection and Alarms
Over Charge Protection
Over Current Protection
Over Discharging Protection
Short Circuit Protection
Auto Battery Balancing
Double Shield Protection
Reverse Polarity Protection
Temperature Protection
Ports
Expansion Cable: 43 inch
Expansion Port: 175A Max
Balance Method
Passive balancing
Charges
Solar Charger: 2000W
Wind Charger: 1000W
Weight
139 lbs (63 kg)
What's in the Box
- 1 x Nature's Generator Powerhouse Eco Lithium Power Pod
- User Guide
POWERHOUSE POWER PANEL
Power Rating
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%
Dimensions & Characteristics
1724×1134×30mm (67.87×44.64×1.18 inch)
Cell Type: Mono PERC 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire rating
UL: Type 1, IEC: Class C
Weight
20.5 kg (45.19 lbs)
What's in the Box
- 4 x Nature’s Generator Powerhouse Power Panels
- 1 x Branch Connector
- 1 x 50ft Nature's Generator Power Panel Cable
- Powerhouse Power Panel Installation Guide

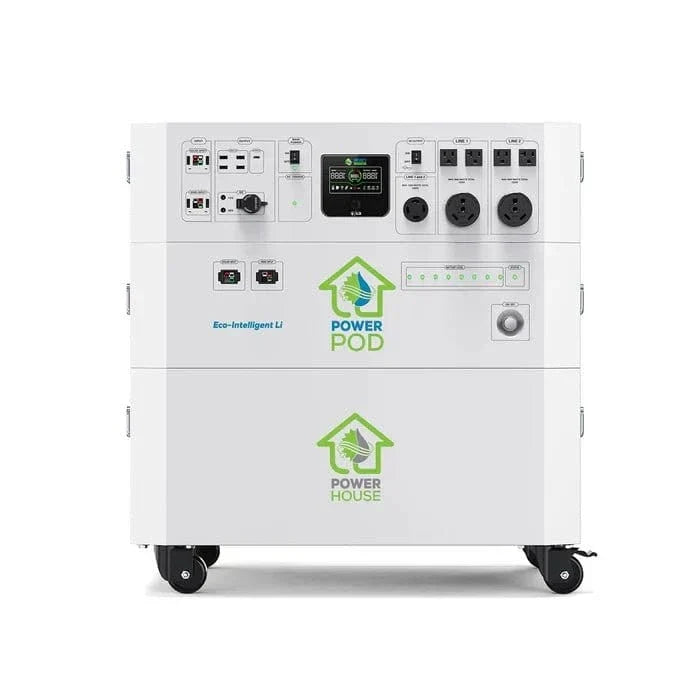

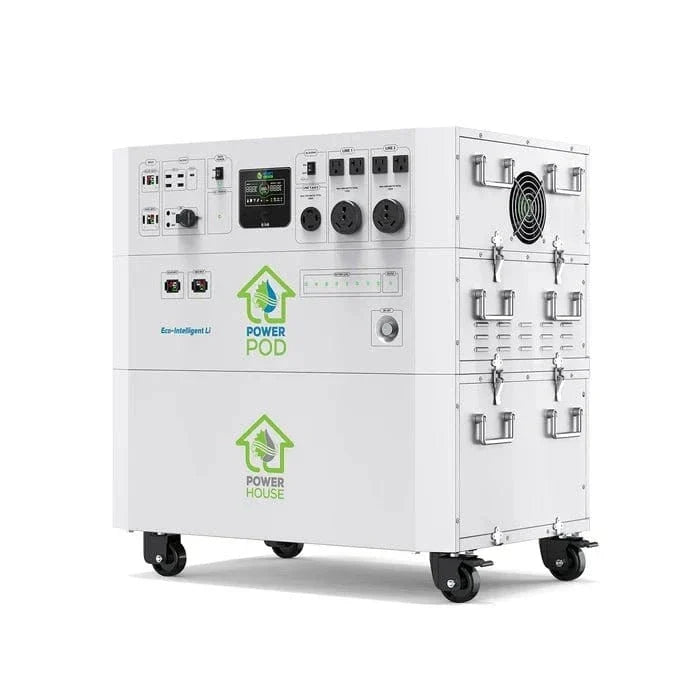

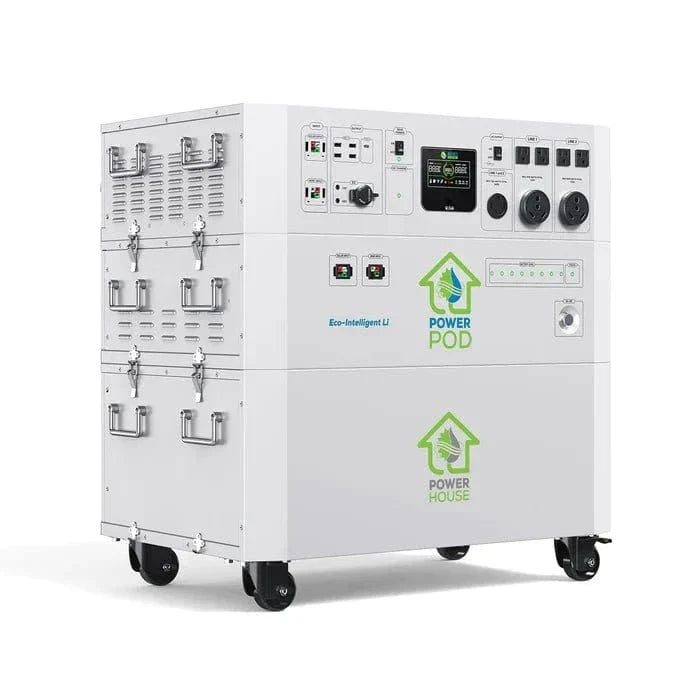

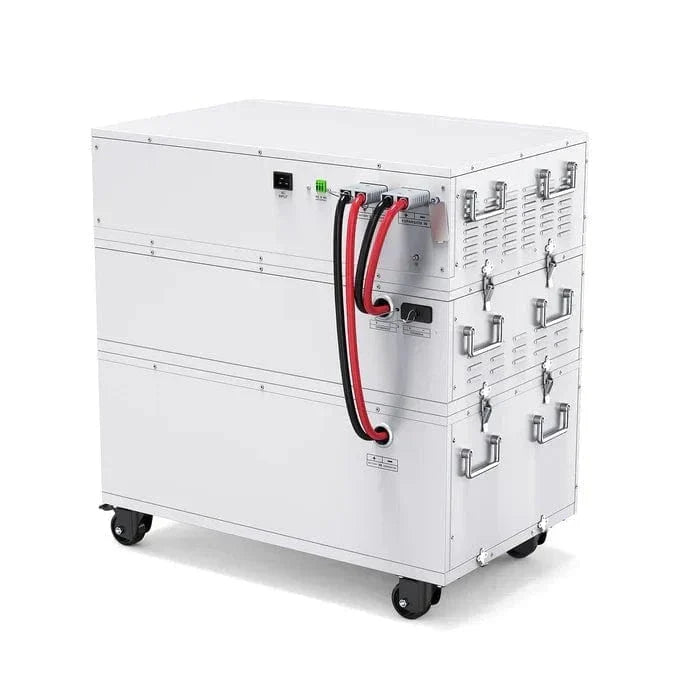

NATURE'S GENERATOR POWERHOUSE:
Battery
Type: AGM Sealed Lead Acid
Capacity: 48V 100Ah (4800Wh)
Self-discharge: Recommend to recharge every 4 months
Dimensions & Characteristics
Power house : 28 x 18 x 19 inches (720*466*472.8mm) Power house with wheel: 28 x 18 x 22.36 inches (720*466*568mm)
Inverter
Output Power: 7200 watt max Output voltage: 240V Split Phase Output voltage: 120V Single Phase Output frequency: 60Hz Output Sine Wave: Pure sine wave Output Phase: Split phase
Operation Temperature
32-104 °F (0-40 °C)
Ports
USB -A Port: 5V, up to 3A (15W) 12V DC Port: up to 20A (240W max) Expansion Port: 350A fuse
Storage Temperature
23–111 °F (-5–45 °C)
Charges
AC Charger: 1300W, 120V AC AC Charger Indicator: red (charging) and green (charged) Solar Charger: 2000W Wind Charger: 1000W
Weight
434 lbs (197 kg)
What's in the Box
- 1 x Nature's Generator Powerhouse Generator
- 1 x Nature’s Generator Powerhouse Battery Storage
- 1 x AC Power Cord
- User Guide

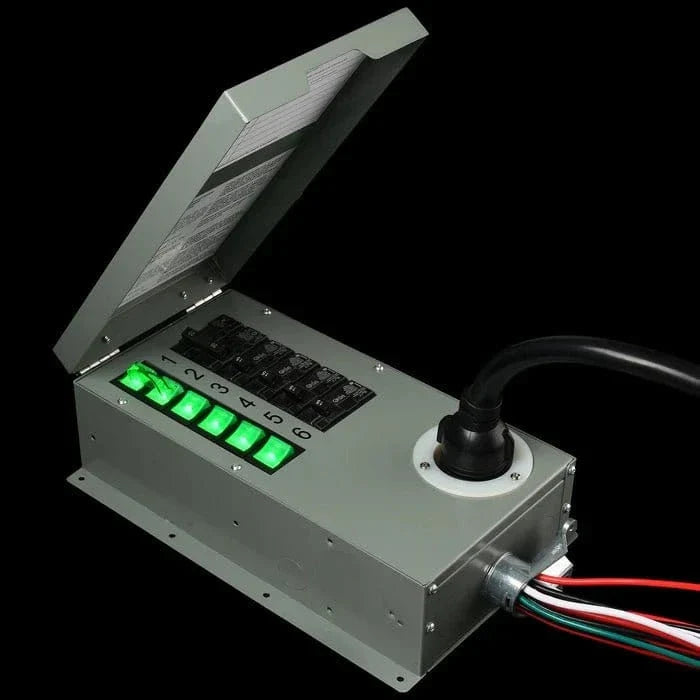

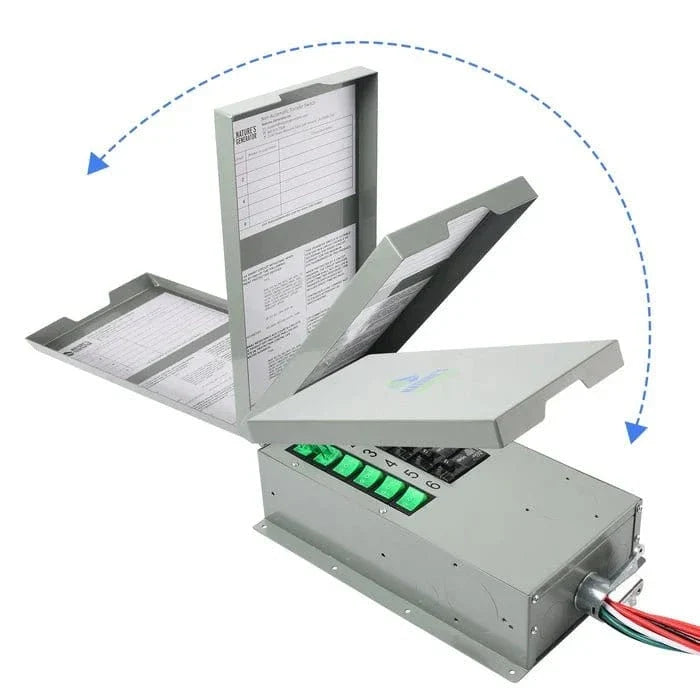

Power Transfer Kit
Features and Details
As the Power Transfer Kit links Nature's Generator Powerhouse to the existing power lines in your indoor load center, you can continue powering hardwired items like your ceiling lights or bulky items like your refrigerator without moving them around or other items in the tight corner that are difficult to be unplugged.
Dimensions
Dimensions : 9.1 inch x 13.7 inch x 3.9 inch (23.0 cm x 34.7 cm x 9.8 cm)
How to use
•Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch.
•Insert the male plug into any of the AC outlets on the Nature's Generator.
General
Voltage: 240V
Number of Circuits: 6 circuits
Weight
Weight out of box: 10.1 lbs. (4.6 Kg)
Certification
SGS Certified - UL1008
What's in the Box
- 1 x 1 x Powerhouse Power Transfer Kit
- 1 x Conduit for Power Trasnfer Kit
- 10 Foot 10AWG Power cord for Power Transfer Kit
- 1 x Cable clamps for Power Transfer Kit
- USER MANUAL
*IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
