Name: MASE IS 4.04 Marine Generator
Brand: Mase
SKU: IS4.04
Price: 11599.00 EUR
Availability: InStock

MASE IS 4.04 Marine Generator

€11.599,00 €18.999,00

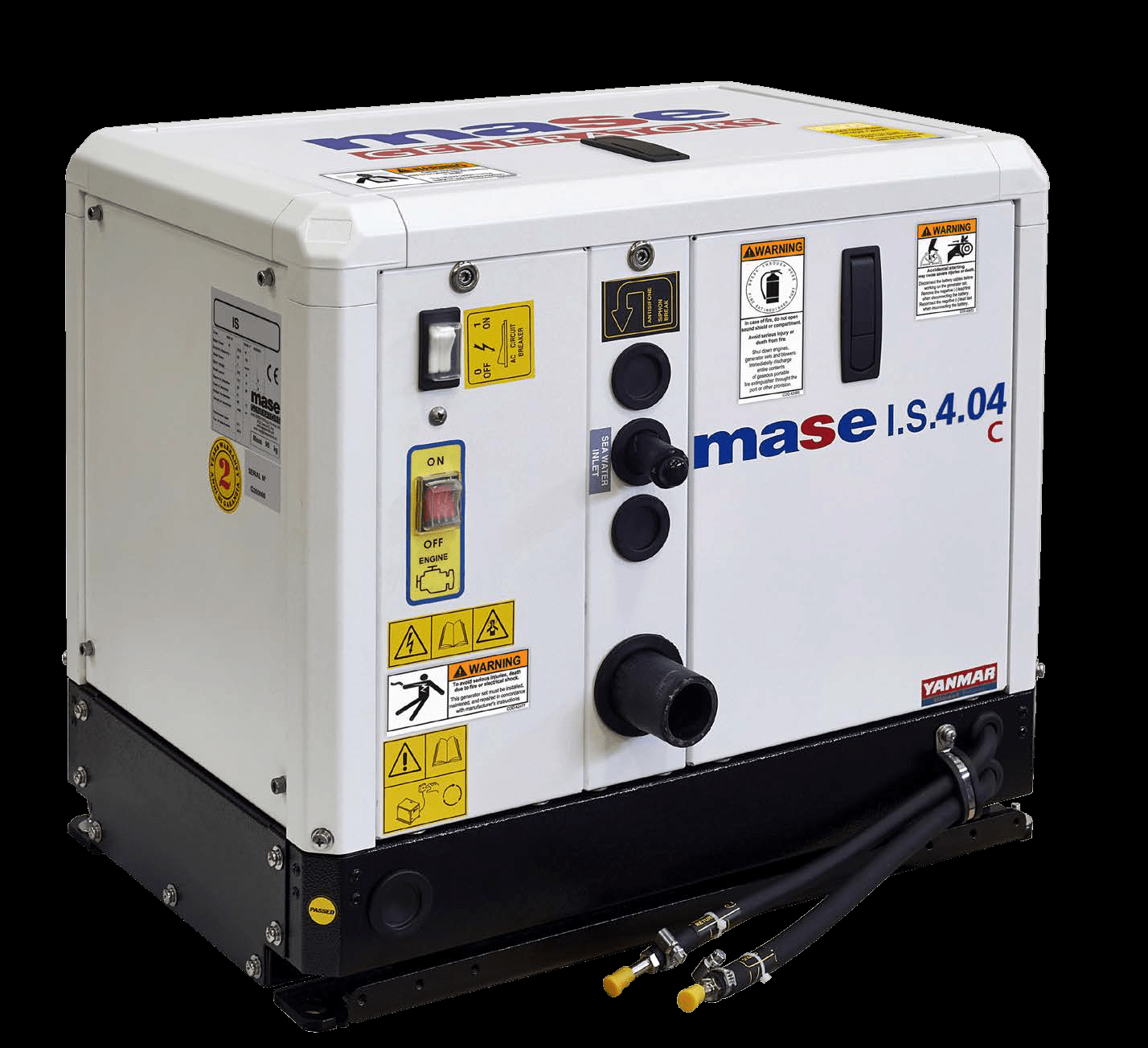

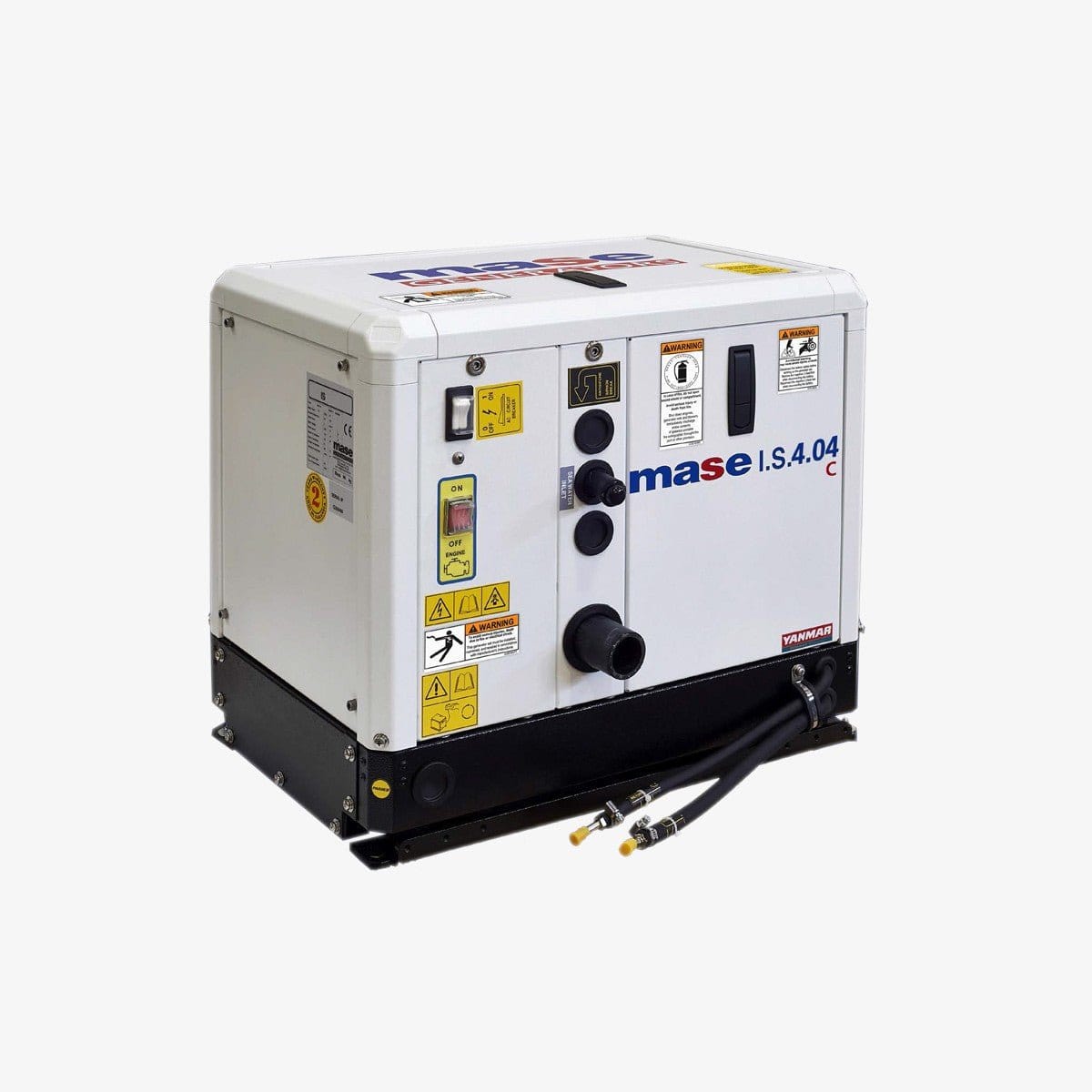

Mase IS 4.04 Marine Generator

Mase IS 4.04 Marine Generator is the ultimate choice for powering your boat! This powerful generator, with a Yanmar 6.7 HP engine, delivers a maximum power of 3.2KW and continuous power of 2.9 kW. Mase Generators are the top choice for shipbuilders and boat owners looking for easy installation, high efficiency, and outstanding performance in the marine environment. With low sound levels and low emissions, Mase Generators are specifically designed and manufactured for the demands of life at sea.

Discover the unparalleled innovation and value of Mase as we design and produce top-of-the-line variable speed generators that optimize medium and high-power hybrid propulsion systems. Trust in our commitment to tailor-made projects, catered specifically to your needs, and experience the exceptional cooling system and anti-vibration mounts found in our Mariner series. With a wide range of options to choose from, our generators are ideal for both pleasure and commercial boats at all levels. Trust in Mase to elevate the performance of your vessel.

SPECIFICATIONS:

ENGINE	YANMAR L70V
FREQUENCY	60 Hz
KW	3.2
RPM	3600
PHASE	1-Phase
CYLINDERS	1
HP	6.7
FUEL CONSUMPTION AT 4/4 LOAD	0.3 gal/h
ACOUSTIC POWER	56 dBA at 23 ft
FRAME	Soundproof
WEIGHT	211.6 LBS
DIMENSIONS
(L x W x G)	23.2 x 16 x 20.2 in

Description:

• Marine power generator

• Silenced version
• Diesel engine 3600 rpm

AC generator - 60Hz

• Type: synchronous, 2-poles, self-regulated, self-

• Voltage stability: ±10% excited, brushless

• Frequency stability: ±5%
• Cooling: Air/water (Intercooler W/A)

• Battery charging output (A-V): 10-12
• Max. power: 3,2 kW

• Safety stop for high coiling's temperature.
• Continuous power: 2,9 kW

• Rotor dynamically balanced
• Voltage (V): 120 - 240

• Rotor and stator epoxy resin coated against external agents
• Amps: 26,6 - 16,3
• Power factor: cos ф 1

Standard Features

• Controller with digital display for full temperature warning and shutdown alarm, monitoring of generator parameters: manual high alternator temperature warning and start, Vac voltage, frequency Hz, engine rpm, shutdown alarm, alarms history, maintenance hour meter, genset battery voltage, engine warning + 10 mt connection cable oil pressure, low oil pressure alarm, engine

• Emergency stop button temperature, engine pre-heating, high engine

• Thermal protection

Accessories on Request

• Siphon break

• Separator and exhaust advice
• Filter kit

• Insulated two poles kit
• Exhaust kit

Noise level

• 56 dBA @ 7mt - 23 ft

OTHER FEATURES:

• Insulation Class: H

• Cooling system: intercooler system heat exchanger (sea water/air) that provides the optimal

performance temperature for the best and reliability of the gensets despite the on board allocation and the room temperature.

• Ambient temperature: 40 °C - 104 °F (*)
• Altitude: 1000 mt - 3281 ft (*)
• Mechanical Protection: IP 23

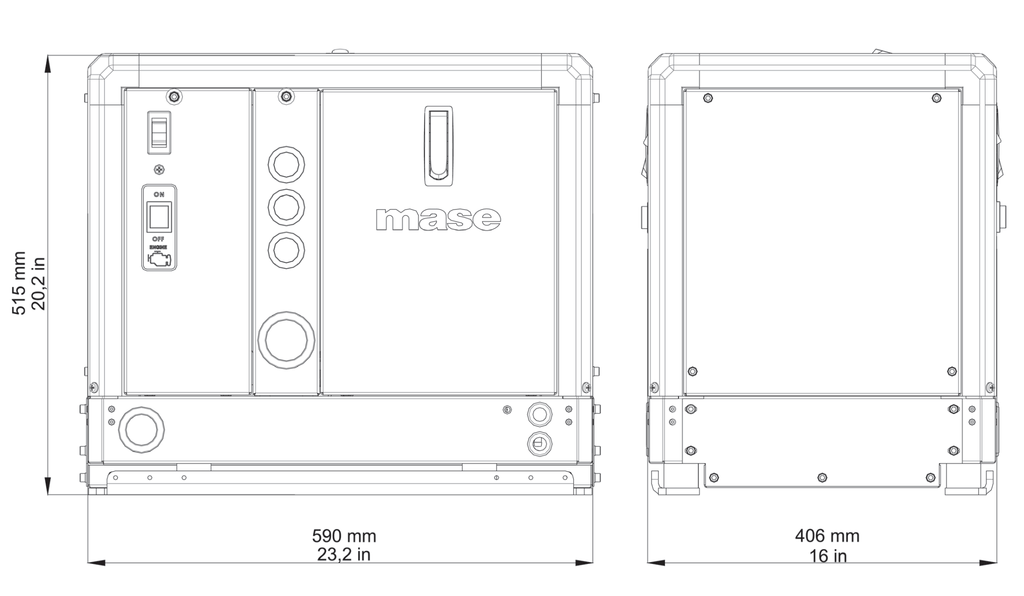

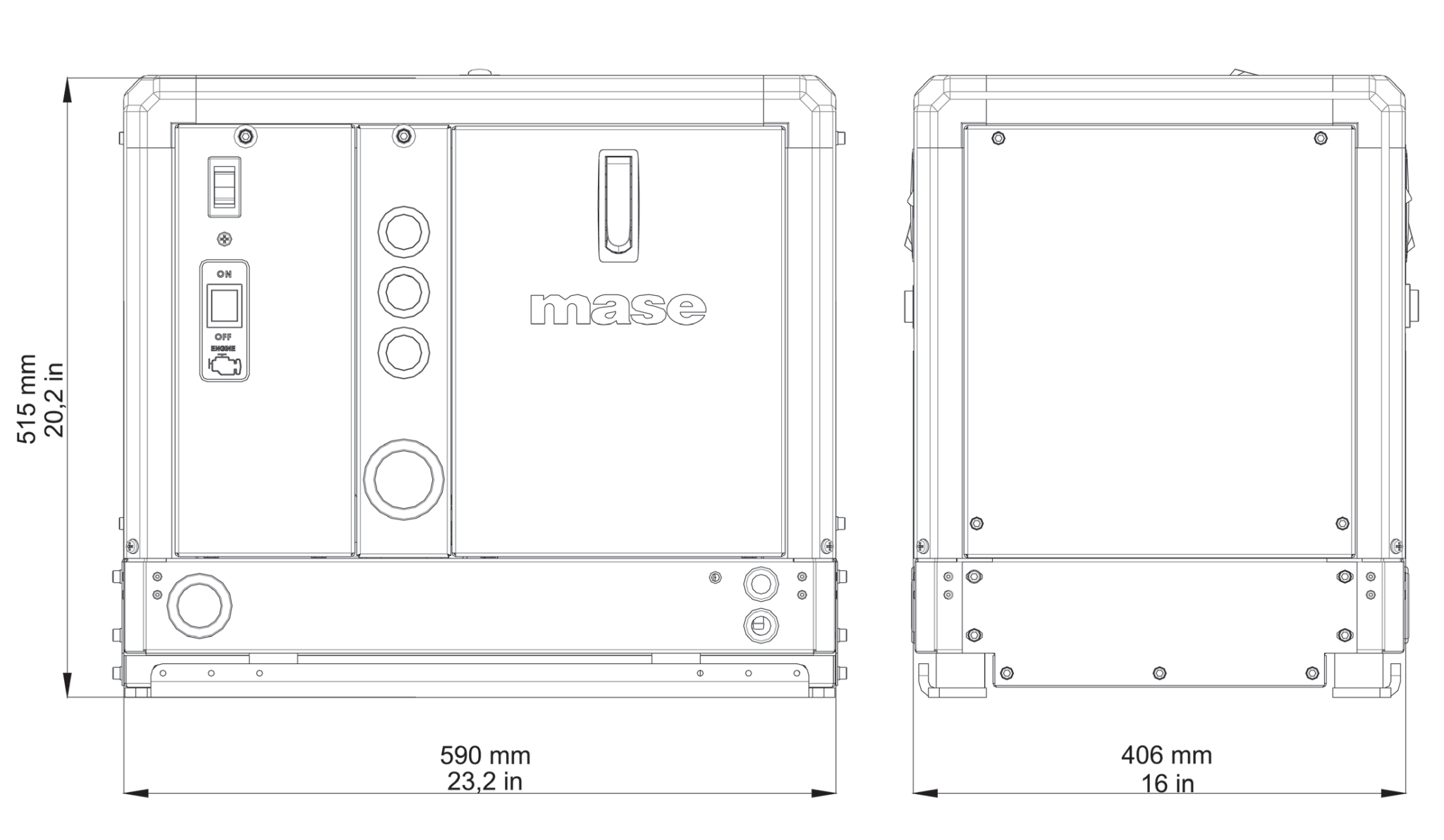

• Dimensions (L x W x H): 590 x 406 x 515 mm -              23,2 x 16 x 20,2 in

• Soundproof cabin made of extremely light marine aluminum with very high resistance to external agents.
• Dry weight: 96 kg - 212 lb
• Max. inclination: 30°
• Water pump flow: 20 lt/min - 5,3 gal/min
