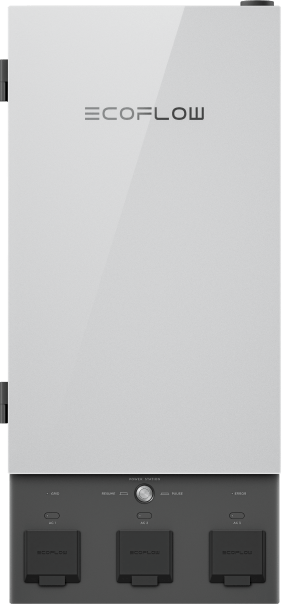

EcoFlow Smart Home Panel 2
EcoFlow Smart Home Panel 2
solarPower your home with the EcoFlow Smart Home Panel 2, equipped with an automatic power transfer switch. Connect up to 3 plug-and-play inverters and stack 15 6kWh batteries for maximum efficiency. Keep your home running even during a power outage. Energy independence has never been easier.
This innovative smart home panel is mote than just a transfer switch. Monitor your energy usage and get the most out of this new innovative power management system.
-
Whole-Home Backup System Hub
EcoFlow Smart Home Panel 2 is the center of your whole-home backup system. Compatible with EcoFlow DELTA Pro Ultra, batteries, generators and solar panels, complete with auto-switchover for instant backup.
-
Smart Energy Management
Circuit control allows for more extended backup and prepares your system for outages with an hourly weather assessment.
-
Save Money Everyday
Customize your energy consumption based
The EcoFlow Smart Home Panel 2 allows you to easily connect to your circuit breaker, ensuring you are always prepared for power outages. With the ability to monitor and control your power consumption, this panel offers peace of mind and energy efficiency. Make your home smarter and more efficient with the Smart Home Panel 2.
The EcoFlow Smart Home Panel 2 is the center of your whole-home backup solution, working alongside EcoFlow DELTA Pro Ultra, generators, and solar panels to protect your home. With a fast, automatic switchover, you'll have reliable backup whenever you need it. Its Smart Energy Management system extends backup duration and forecasts outages through hourly weather checks. Smart Home Panel 2 customizes your energy usage based on time-of-use rates and your home's solar energy production.

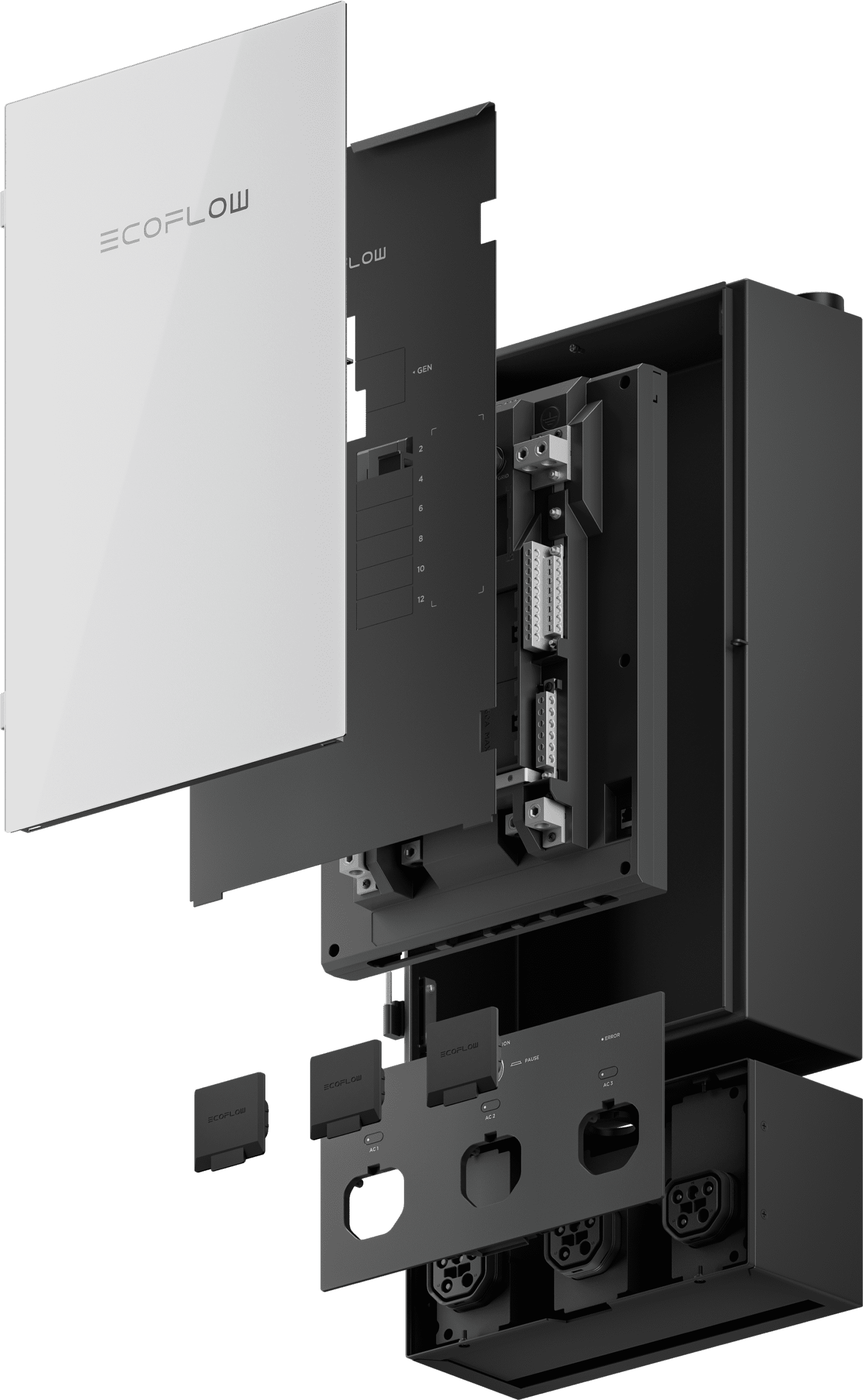

What's in the Box?
The items pictured above are included with the purchase of the Ecoflow Smart Home Panel 2
Ecoflow Smart Home Panel 2 Video
Fully control your Energy usage with the Smart Home Panel 2 App:
Take control of your power usage with EcoFlow's Smart Home Panel 2 app! With this revolutionary app, you can easily monitor and manage your energy consumption from the palm of your hand. Say goodbye to wasted energy and hello to a more efficient and eco-friendly home. Upgrade to the Smart Home Panel 2 today!
Ecoflow Smart Home Panel 2 Specifications
-
QuickLook
-
Dimensions (in)
Distribution Panel: 24.8 x14.9 x 6.7 in Battery Connection Box: 6.9 x 14.4 x4.3 in Distribution Panel+Battery Connection Box: 32.4x144.9x6.7 in
-
Warranty
10 Years
-
Net Weight (lb)
Distribution Panel: 39.7 lb Battery Connection Box: 7.2 lb Distribution Panel + Battery Connection Box: 52.9 lb
-
-
Output
-
Output Voltage
120V/240V
-
Wire Diameter
14-6AWG
-
Circuit Breaker Current
Max. 60A
-
Number of Loads
12
-
Control
App Remote Control
-
Output Wiring Methods
L1/L2/N/PE
-
-
Grid Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Input Current
100A
-
Wire Diameter
4AWG
-
Circuit Breaker Current
Max. 100A
-
-
Generator Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Gas Generator Input
12kW
-
Wire Diameter
1AWG
-
Circuit Breaker Current
Max. 50A
-
-
Home Backup Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Input Current
30A (one battery)
-
Max. Input Power
7200W (one battery)
-
-
Environmental Data
-
Operating Temperature
-22°F-120°F
-
Storage Temperature
-40°F-158°F
-
Max. Operating Altitude
6561.6 ft
-
Relative Humidity
100%
-
Protection Level
Distribution Panel: NEMA TYPE 3R rainproof Battery Connection Box: NEMA TYPE 1
-
Communication Methods
Wi-Fi & Bluetooth & Ethernet
-
Smart Home Panel 2 Video Below
-
Find out more about the Ecoflow Smart Home Panel 2 in this informational video above.
