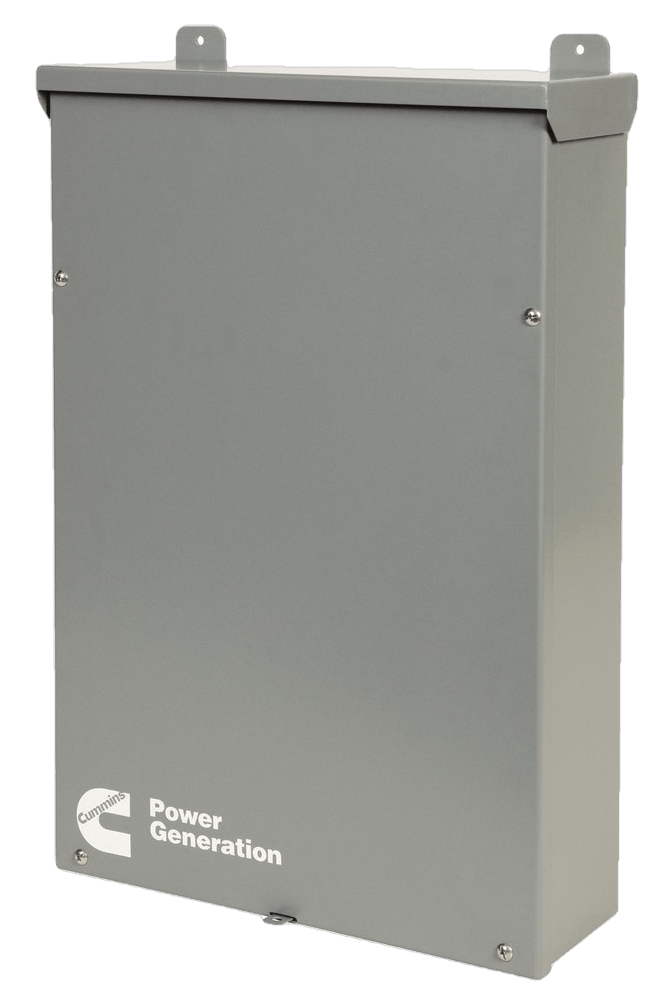

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)

€1.190,00 €1.499,00
Skip to product information
Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)
  • Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)
  • Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)
Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum Enclosure) (Service Disc.)

€1.190,00 €1.499,00

The Cummins RA-200-SE is an outdoor automatic transfer switch specifically designed for RS/RX Generators. This 200-Amp transfer switch is constructed with an aluminum enclosure, and comes with a service disconnect. It provides reliable power supply with a quick transfer time of 10 seconds or less, ensuring safety and uninterrupted operation.

 Pre-order only Expected fulfillment - end of June 2026

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Not Required

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • RA Series 200-Amp Automatic Transfer Switch w/ Service Disconnect
  • Designed for Cummins RS & RX series generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • Versatile Design
  • For standby use in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utility power
  • NEMA 3R (Indoor/Outdoor) Aluminum Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interlocked Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 200-Amps @ 240-Volts



General Information


Overview

  • Product Category - Generator Transfer Switches
  • Weight - 58 Pounds
Consumer Warranty
1 Year
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches

Product Specs
PART# -A064G549

Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
