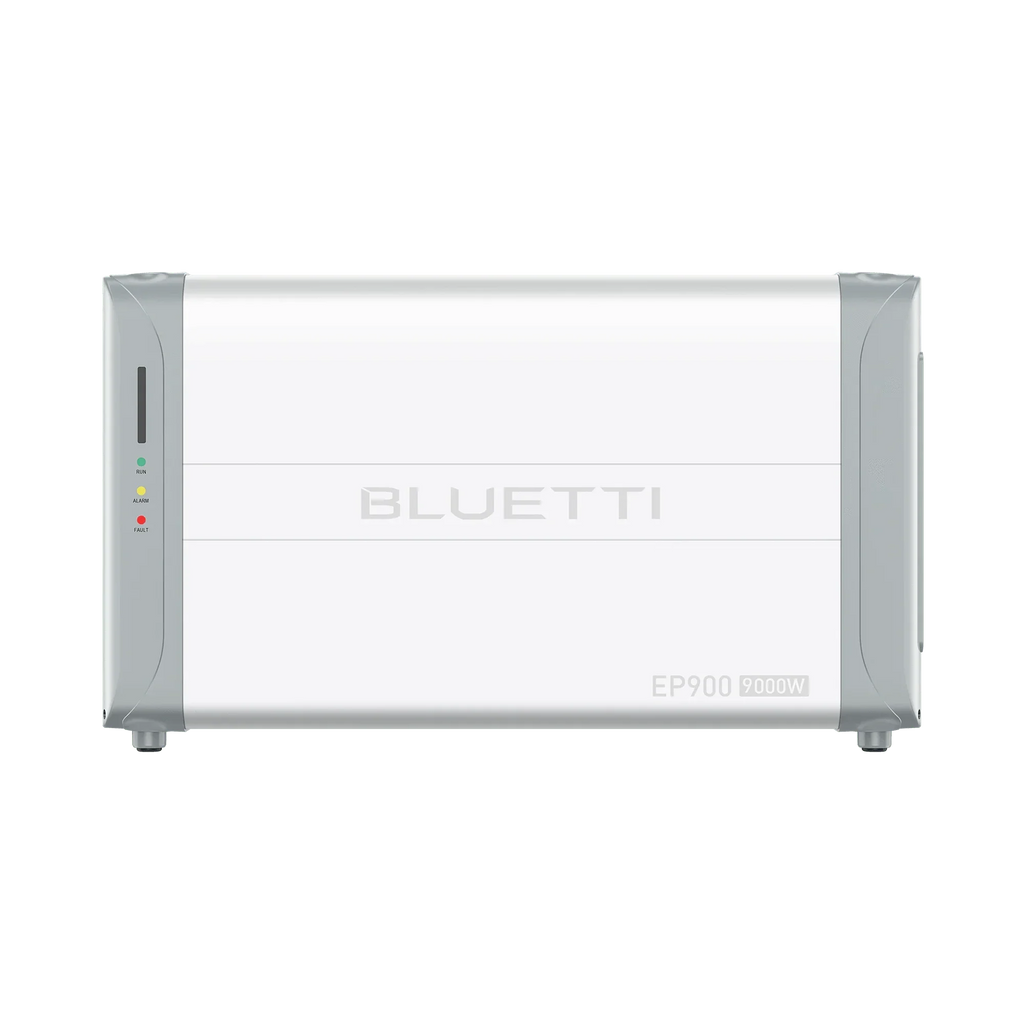

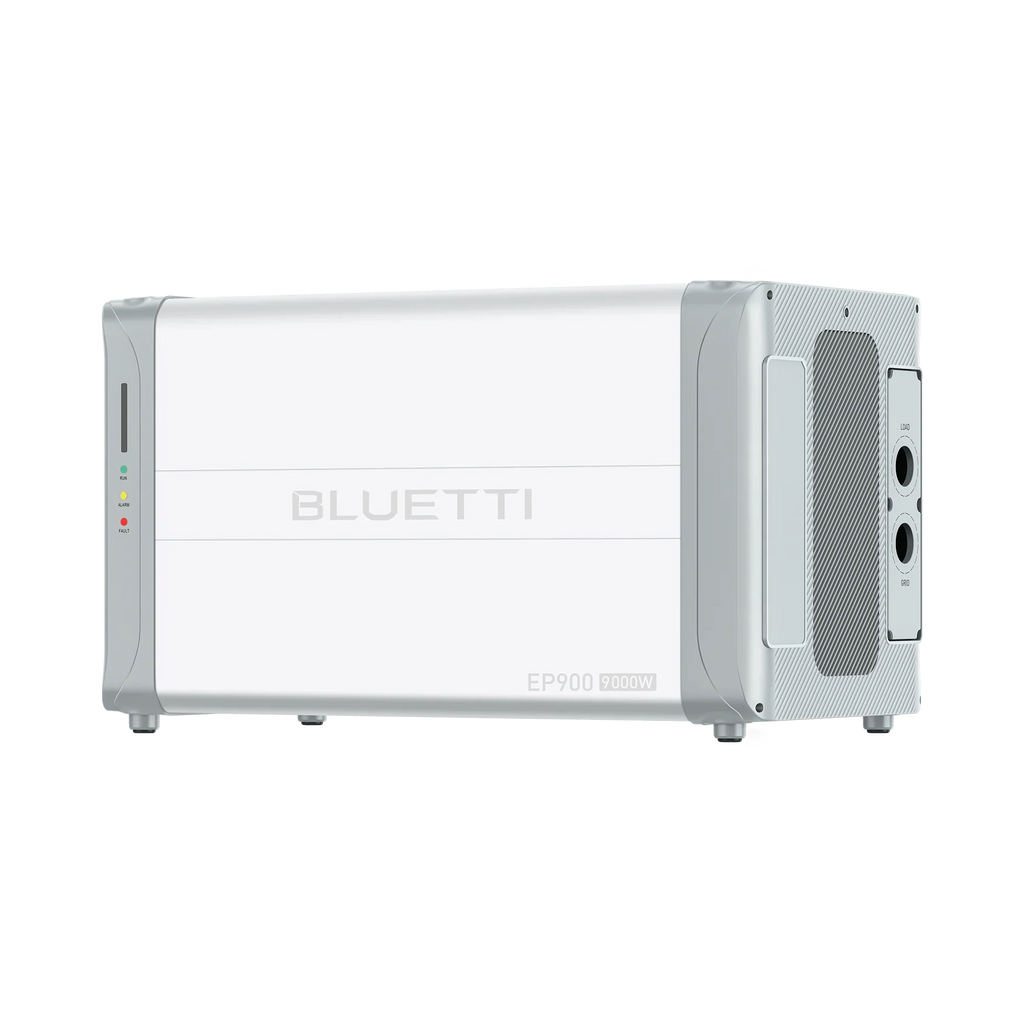

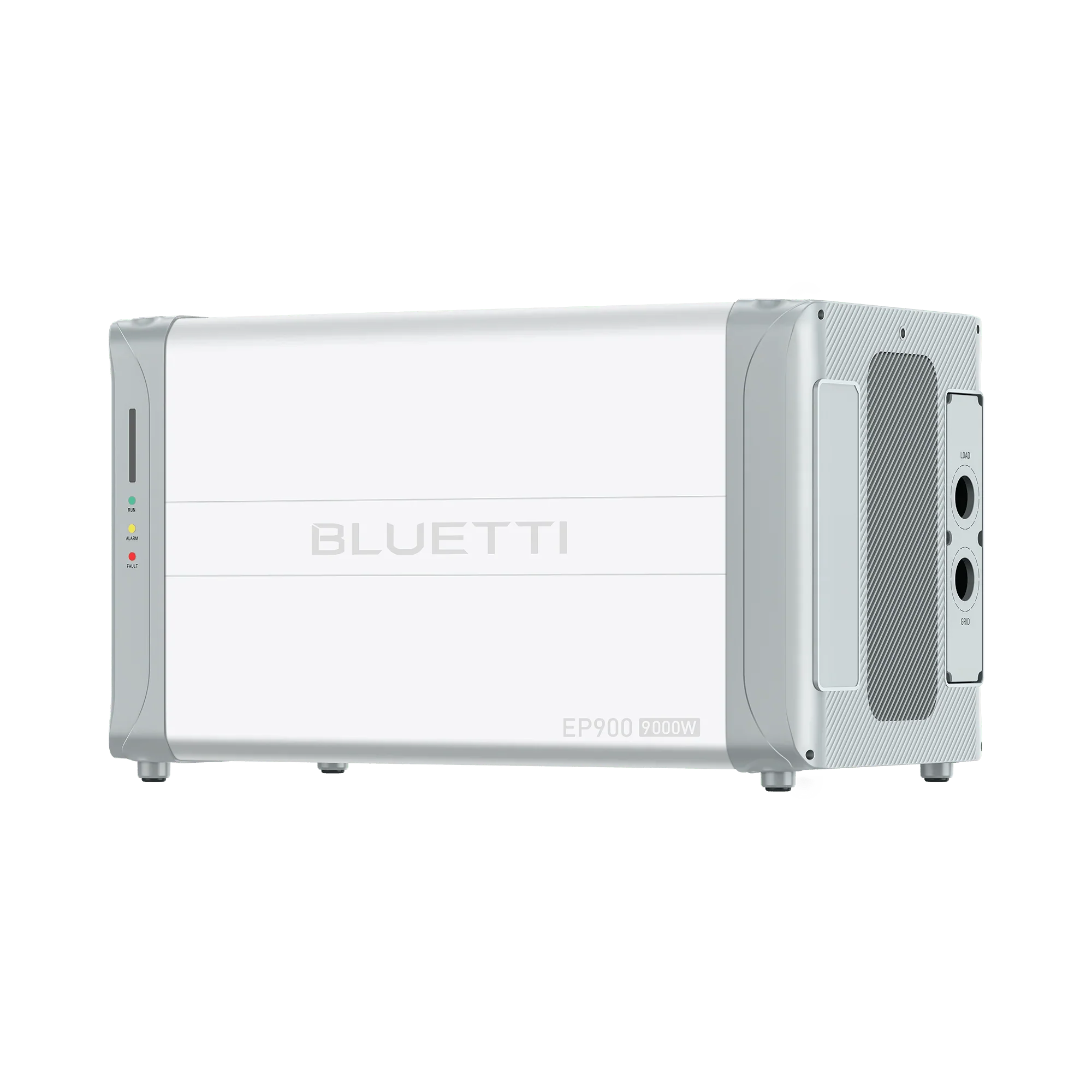

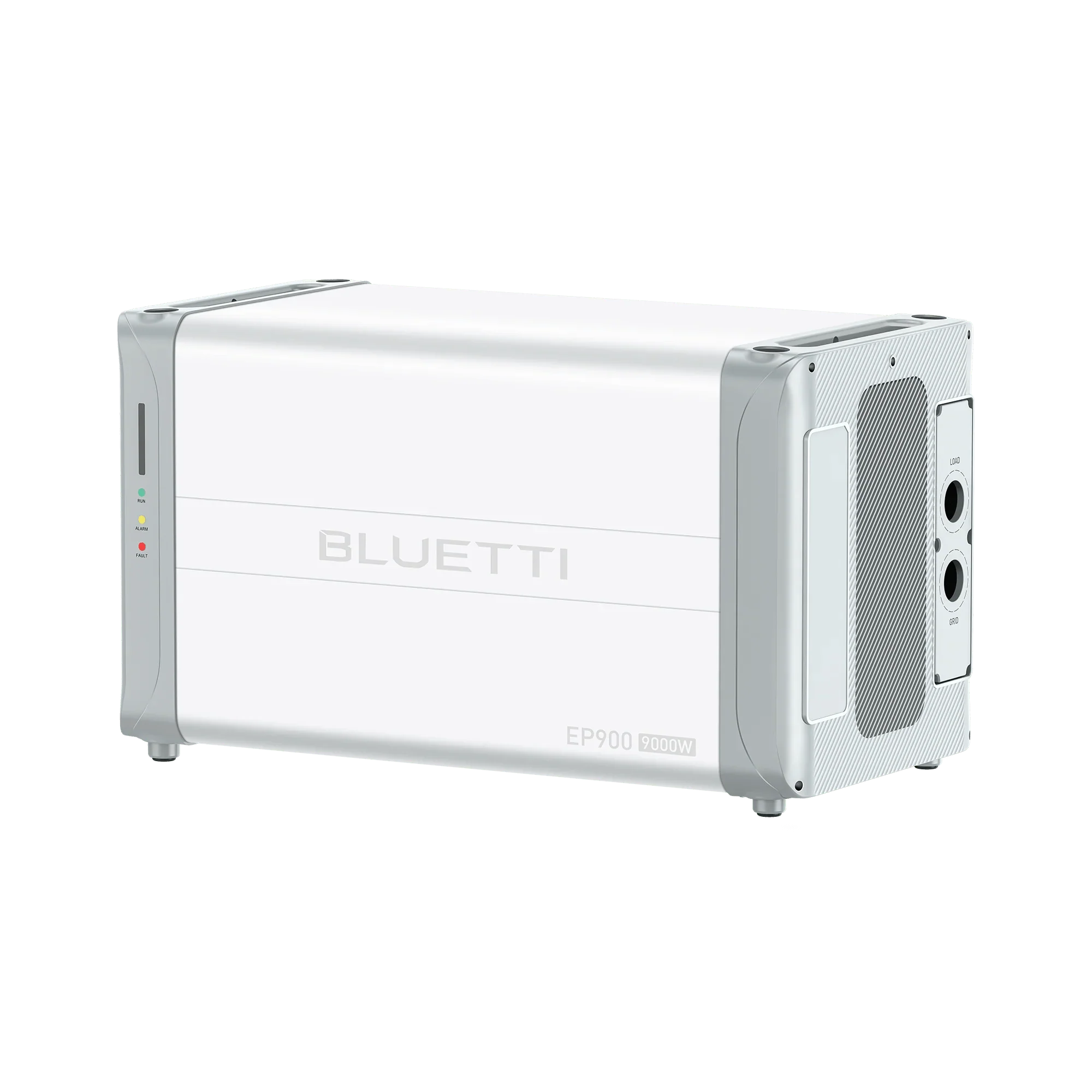

Bluetti EP900

The Bluetti EP900 is the perfect home energy solution. It comes with 9,000W of power and is compatible with both 120V and 240V devices. With an expandable capacity ranging from 9,920Wh to 19,840Wh, you can rest assured that you won't run out of energy. It comes with an industry-leading 10-year LiFePO₄ battery, ensuring years of safe, reliable power. The EP900 is compatible with both existing and new solar systems, and its IP65 water-resistant rating allows for both indoor and outdoor installation so you can install it wherever you need it. It is also incredibly efficient and effective, enabling you to profit from the sale of electricity back to the grid.

Experience True Energy Independence

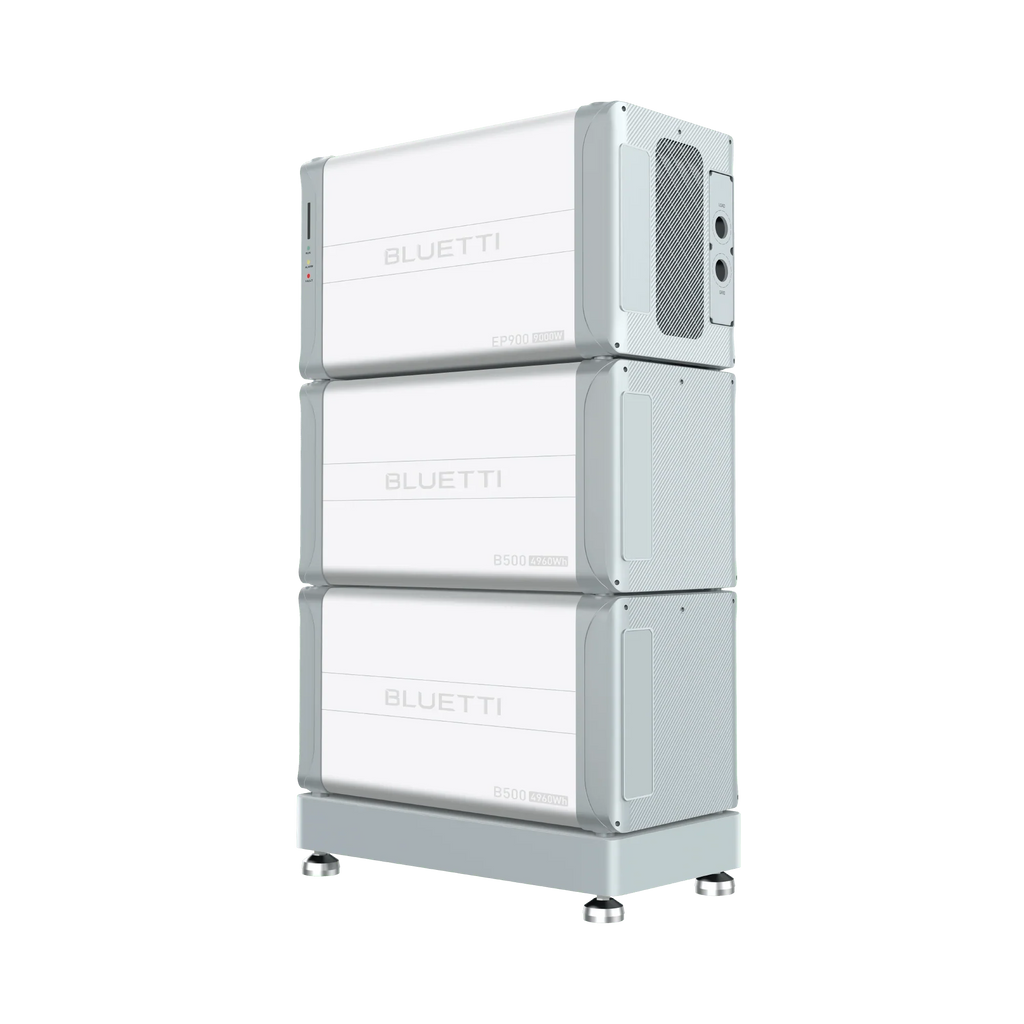

Harness and store solar power for on-demand use. Whether you want to avoid high energy bills during peak hours, protect yourself against potential energy price hikes, or prepare for a power outage when utility power is unavailable, you can rely on the EP900&B500 Energy Storage System to keep your essential appliances running smoothly. Moreover, you can sell any excess energy back to the grid, making your energy consumption more efficient and cost-effective.

Design A System That's Right For You

With an impressive 10-20kWh capacity, up to 9,000W of power, and the capability to run both 120V and 240V devices, the EP900 can accommodate your daily needs effortlessly.

Superpower For Heavy-duty Work

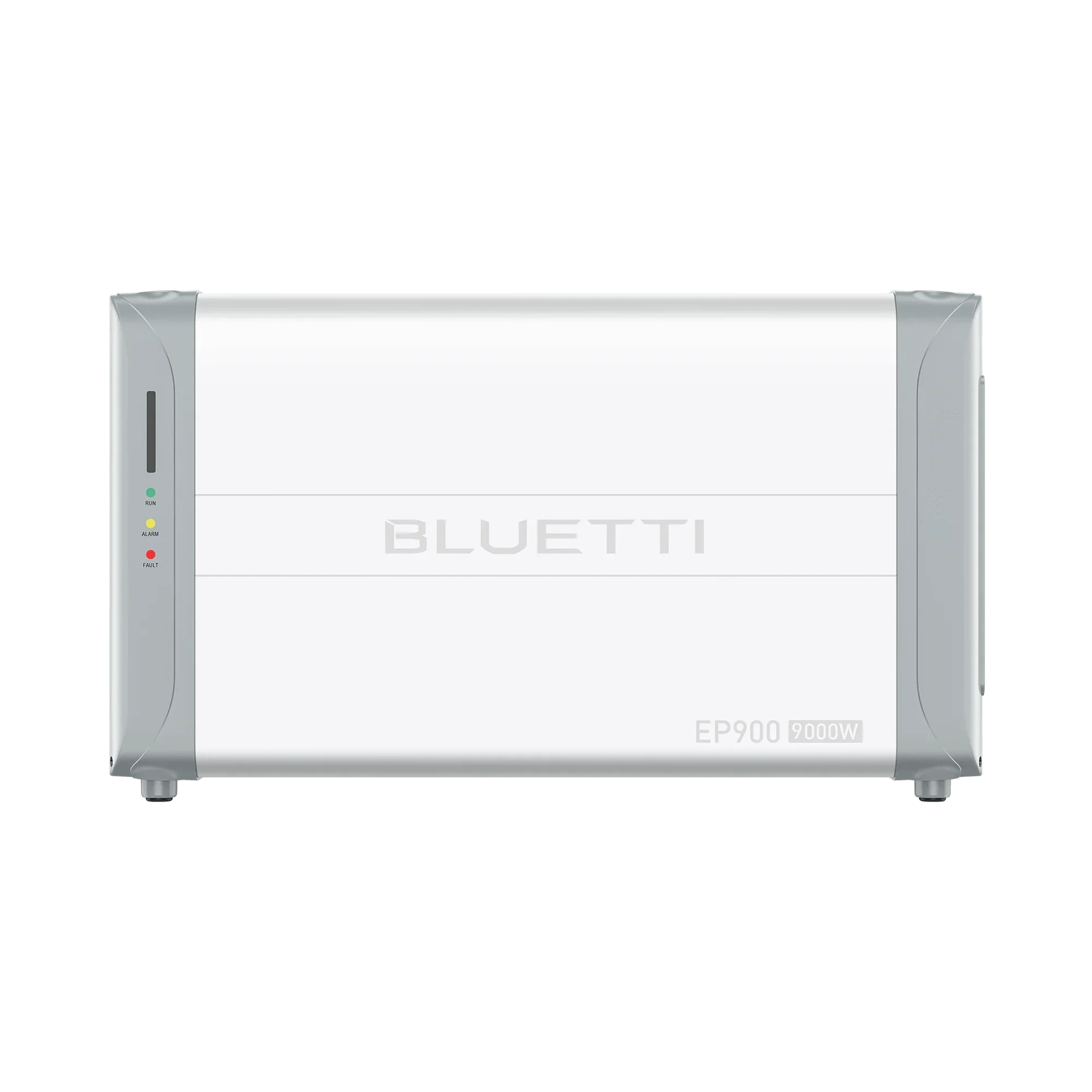

The EP900 has a 9kW inverter that provides either 120V or 240V output options, making it suitable for high-wattage appliances - like power tools in small business and residential scenarios. Combine two EP900 units in parallel to reach as much as 18kW output, enough to power the whole house without any fuss.

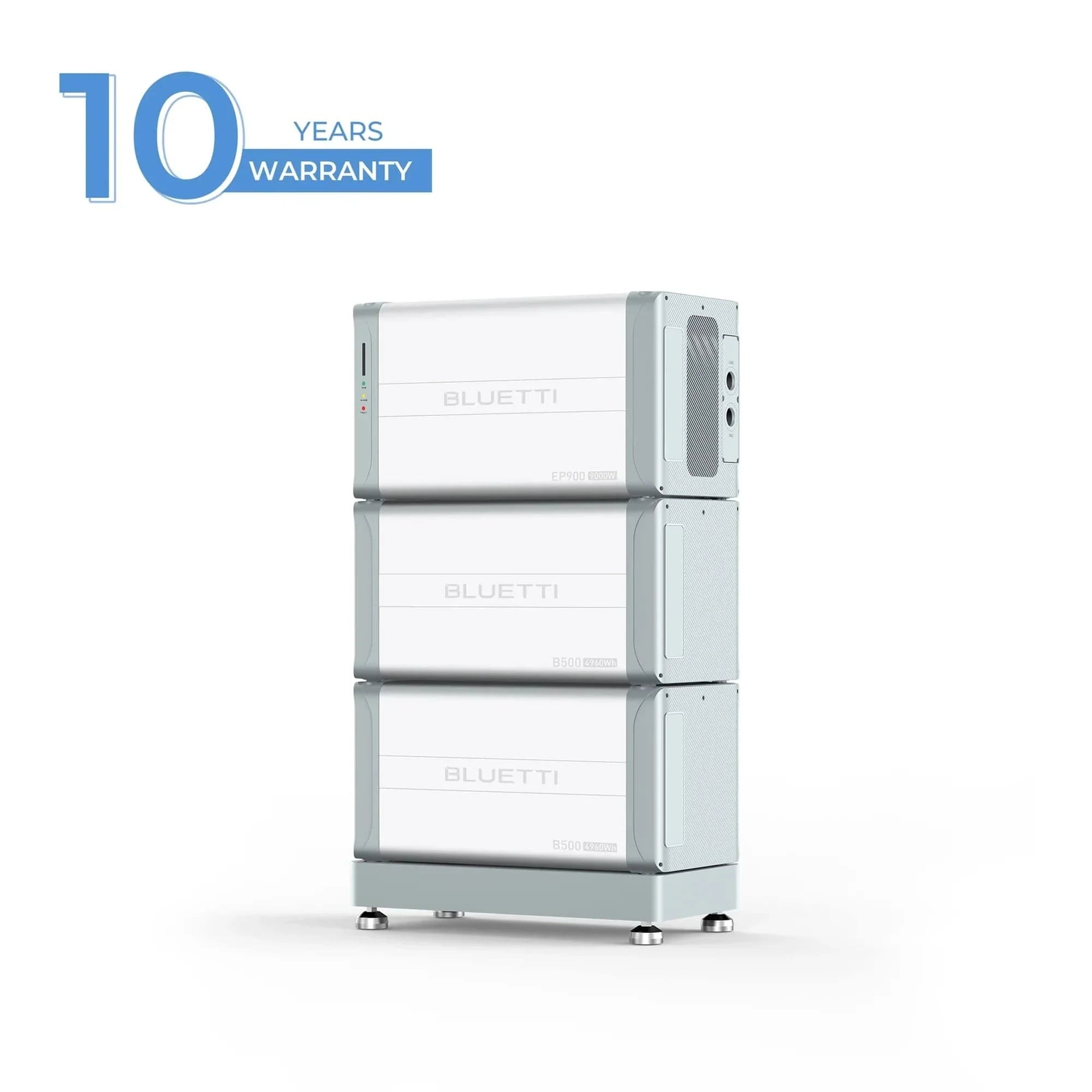

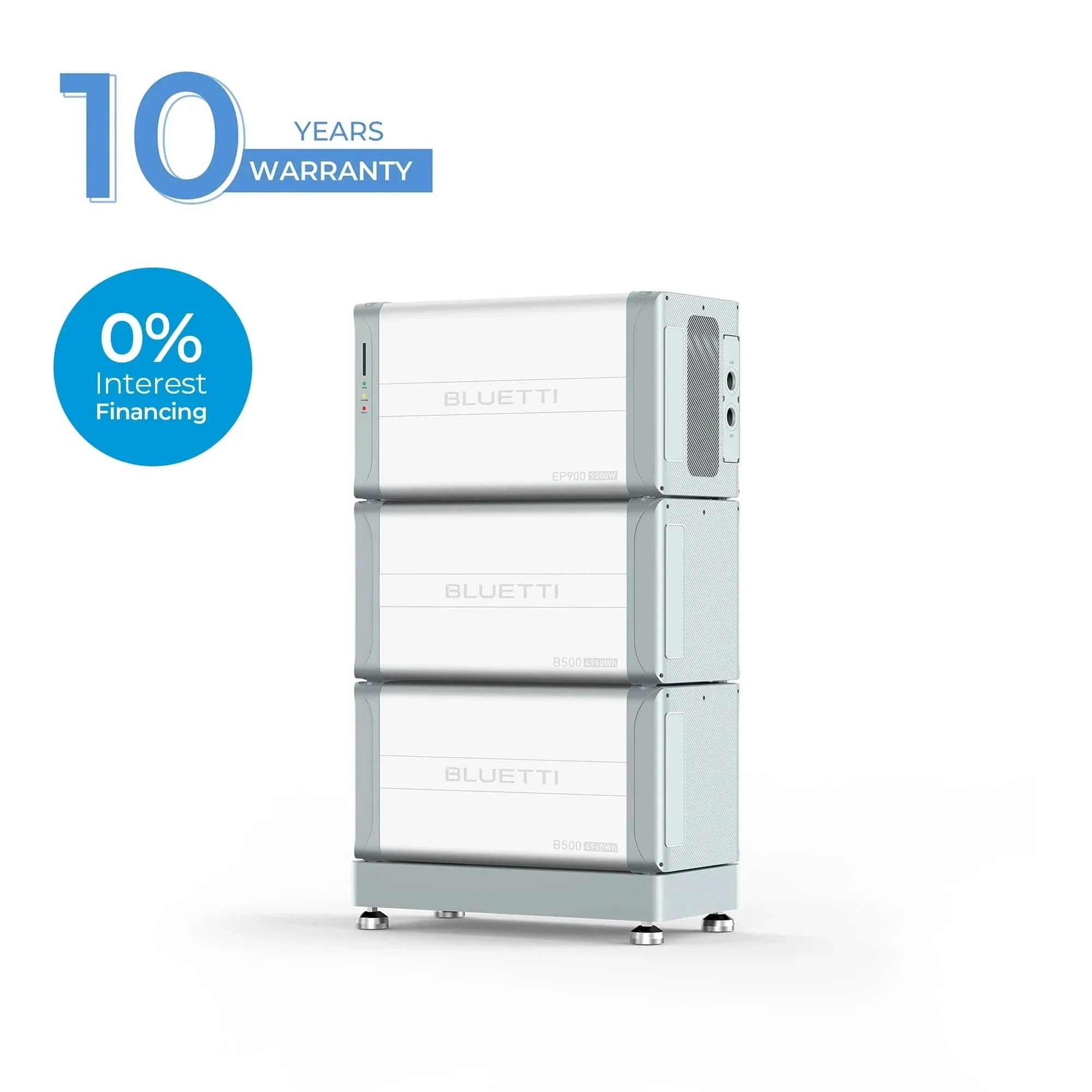

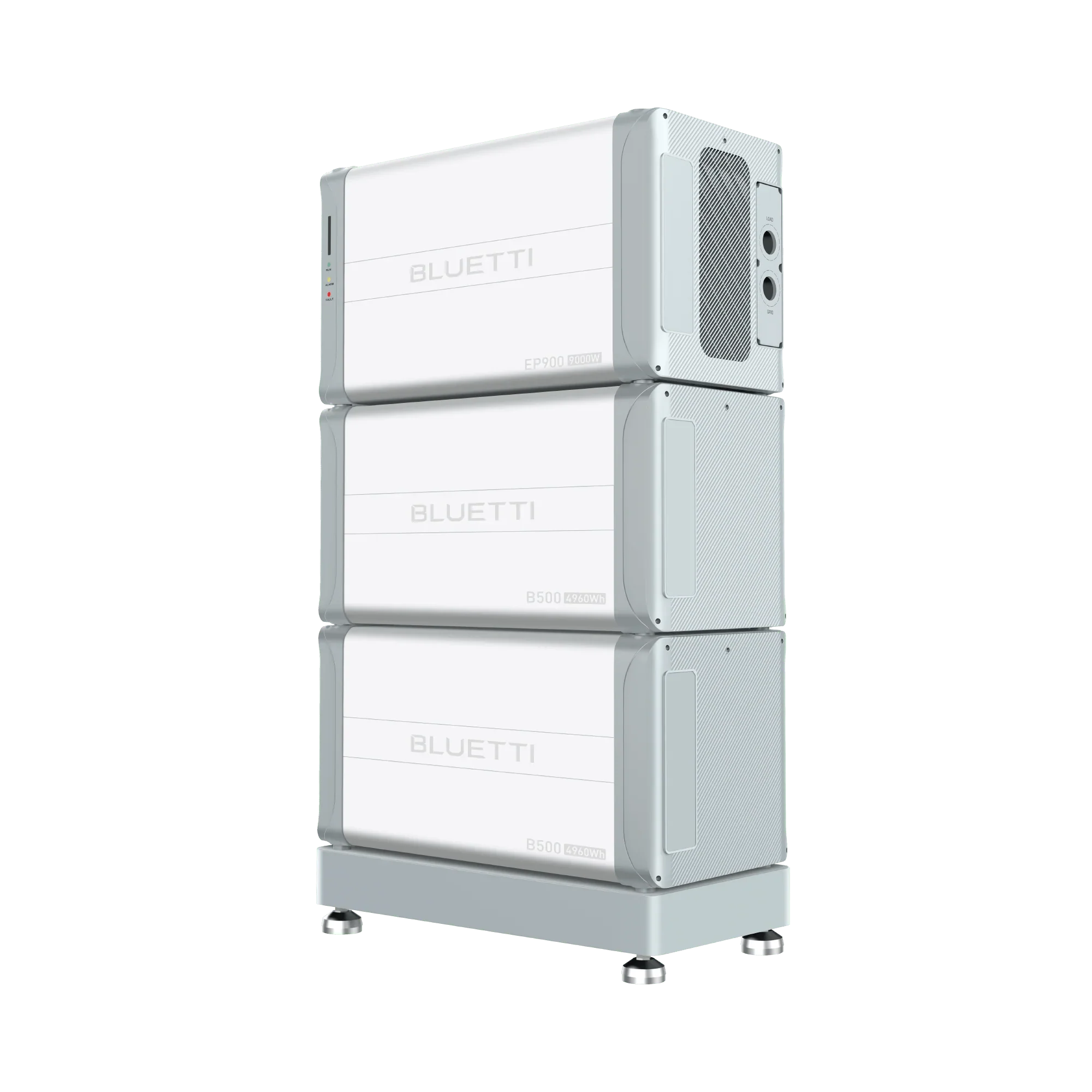

100% Modular Design, More Possibilities

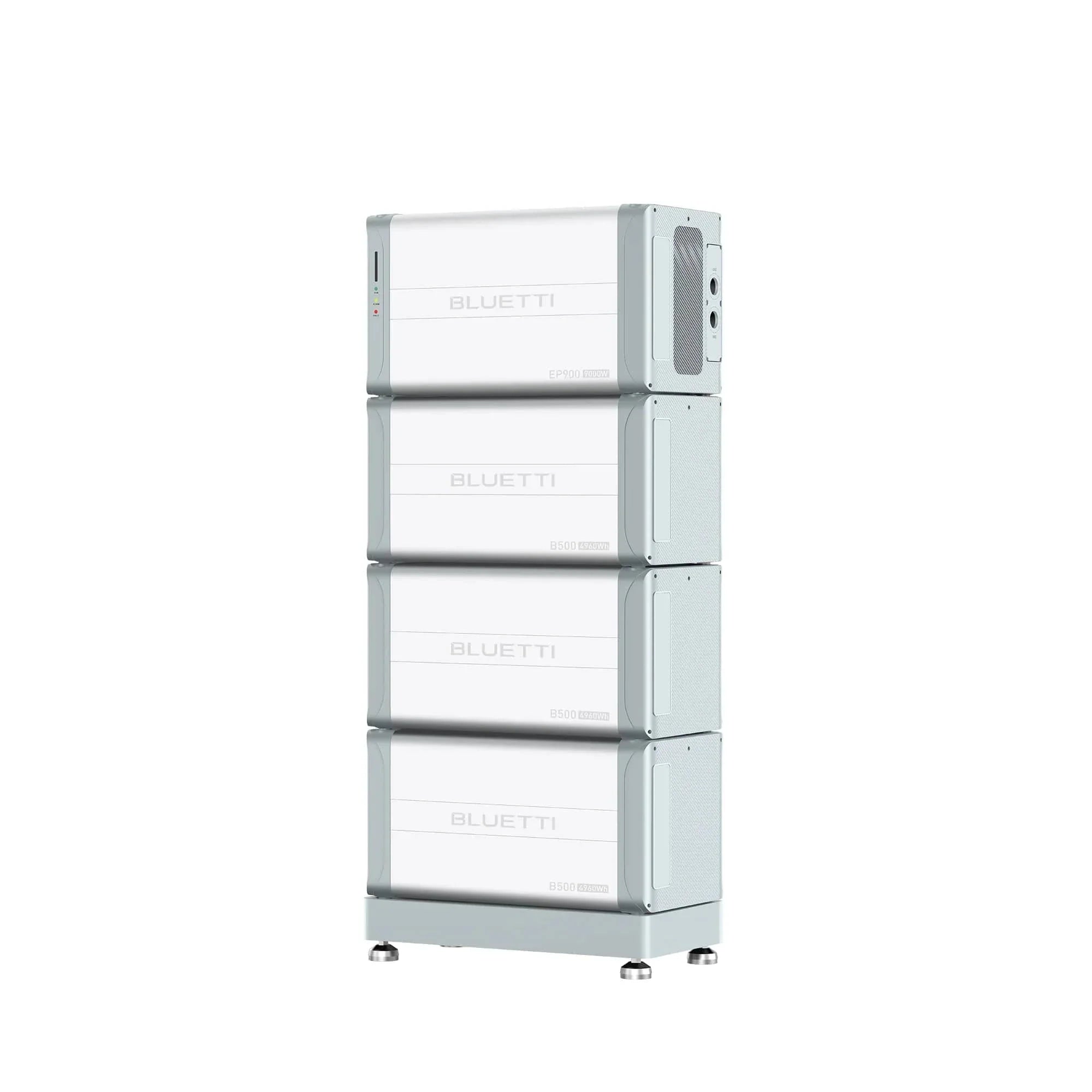

Modularity is how flexible it is to customize your battery to meet changes in your home's energy requirements. EP900 allows you to incrementally increase your battery capacity of up to 19.8kWh (39.6kWh for two EP900s) as your home's energy needs grow over time.

Spare You A World of Hassle

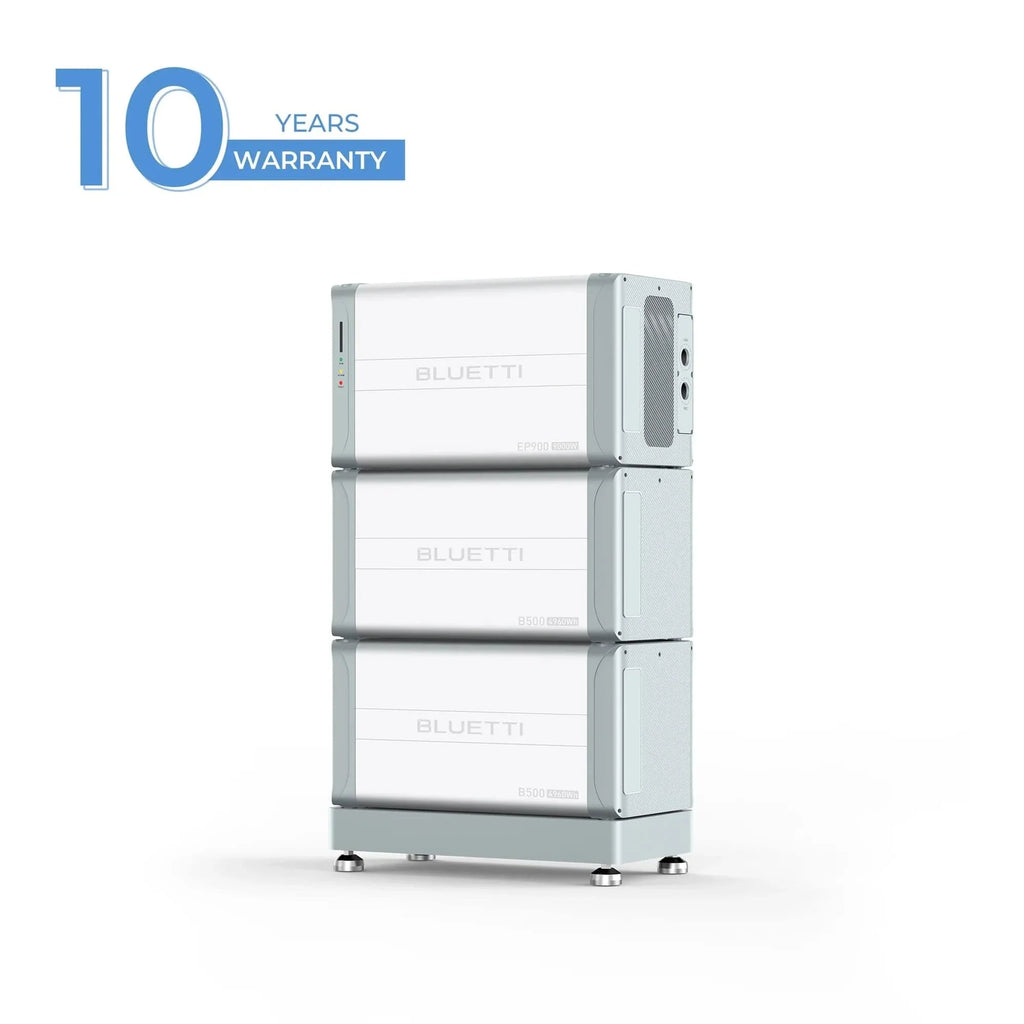

The EP900 system adopts the most pioneering technology and the safest LiFePO4 battery for optimal performance. It also provides an unprecedented 10-year warranty and certified installation services (optional), giving you the most convenient, worry-free, and reliable home backup power in all directions.

Suitable for all occasions.





Take the Bluetti EP900 with you to your off grid location.



•





•





•





•




Specifications:

EP900

GENERAL

Scalability:

With 2~4 B500's (From 9.9KWh~19.8KWh)

App Control:

BLUETTI APP via WiFi or Bluetooth

Warranty:

10 Years

Protection Grade:

IP65

Noise:

≤50 dB (A)

Working Temperature:

-4℉~122℉ / -20℃~50℃

Relative Humidity:

5%~95%

---

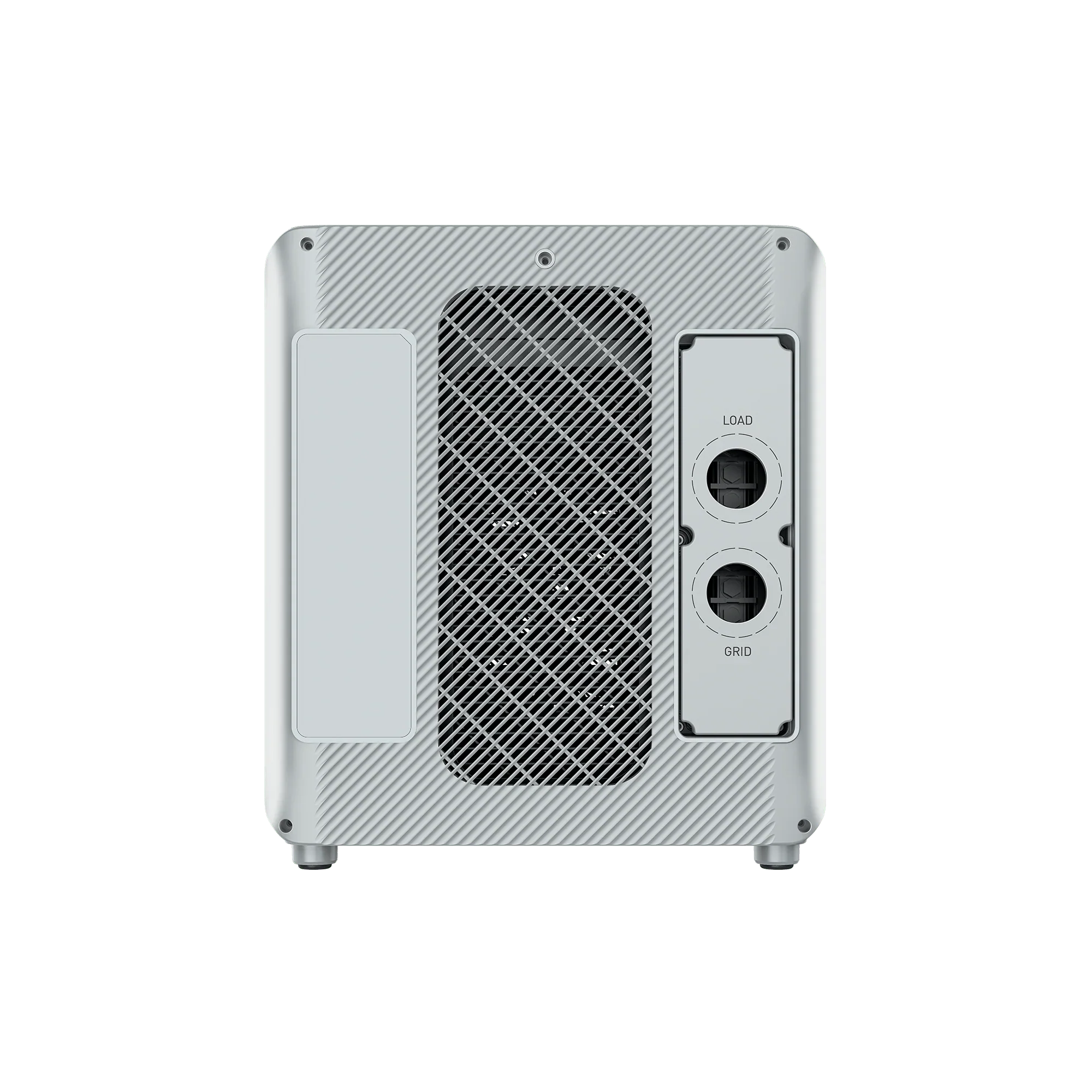

AC (Grid-Tied)

Output Power (240V):

9kW

Wiring:

L1 / L2 / N / G

Voltage:

120VAC / 240VAC

Output Current:

37.5A × 2

Input Frequency :

60Hz

On and Off-grid Switching Time:

<10ms

Protection:

Anti-islanding Protection
Output Overcurrent Protection
Short-circuit Protection
Over-temperature Derating
Over-temperature Shutdown
Note: The PV system is installed on the battery side and has no residual current detection.

---

AC (Off-Grid)

Output Power (240V):

9kW
Note: 7.6kW with 2 B500

Output Voltage:

120VAC / 240VAC

Output Current:

37.5A × 2

Input Frequency:

60Hz

Protection:

Output Overcurrent Protection
Output Short-circuit Protection
Over Temperature Protection

---

PV Input

Maximum Input Power:

9kW with 4 B500
7.5kW with 3 B500
5kW with 2 B500

MPPT Channels:

2 (3000W + 6000W)

Array In Series:

1/2 (3000W + 6000W)

Maximum Input Voltage:

550V

MPPT Voltage Range / Rated:

150V~500V / 360V

Single MPPT Maximum Input Current:

12.5A / 25A

Single MPPT Maximum short circuit current : 15A/30A

MPPT Efficiency:

99.90%

PV Inversion Efficiency:

97.0% Max.

Protection:

Reverse Polarity Protection
Insulation Resistance Detection
Arcing Detection

---

Certifications:

NEMA 4X, CA65, FCC, IC, UL1741, IEC62619, IEC60529, IEC60730-1, UL9540 (EP900+B500)

---

Packaging List

EP900 inverter:

x 1

Sub Panel (Reliance):

x 1

Bracket #1:

x 2

Bracket #2:

x 2

M5 hex nut:

x 2

Plastic cover (PV):

x 1

Plastic cover (AC, with label):

x 1

Cord organizer:

x 2

AC cable protection case:

x 1

Plastic housing (PV+ Input)
Metal core (PV+ Input):

x 2

Plastic housing (PV- Input)
Metal core (PV- Input):

x 2

MC4 wrench:

x 1

Black protection cover (BAT- Input)
(Pre-installed on EP900 inverter):

x 1

Red protection cover (BAT+ Input)
(Pre-installed on EP900 inverter):

x 1

M4*12 screw (8 for BAT+/- protection cover,
6 for AC cable protection case,
pre-installed on EP900 inverter):

x 14

M8*12 screw
(For battery power cable):

x 2

M6*12 screw
(For bracket, pre-installed on EP900 inverter):

x 2

M5*10 screw
(4 for fixing device to the bracket,
2 for PV grounding):

x 6

M4*10 screw
(For exterior trim):

x 10

M8*60 expansion bolt:

x 2

RNB8-6S OT terminal (AC):

x 9

RNB3.5-5S OT terminal
(PV Grounding):

x 3

Red battery power cable
(Positive):

x 1

Black battery power cable
(Negative):

x 1

IoT Controller:

x 1

Mounting bracket
(IoT controller/Grid communication module):

x 1

Grid communication module:

x 1

Expansion wall plug:

x 2

M3 tapping screw
(KA3*25):

x 2

CT signal cable (4m)x 1

DRMs+COM signal cable (4m):

x 1

M20-6 PIN adapter:

x 2

CT:

x 2

Self-tapping screw M8*40:

x 2

---

B500 General

Protection Grade:

IP65

Noise:

<25dB

Operating Temperature:

Charging: 32℉~104℉ / 0℃~40℃ Charging: -4℉~104℉ / -20℃~40℃
(Inverter connects to the grid)
Discharging: -4℉~104℉ / -20℃~40℃

Storage Temperature:

-4℉~104℉ / -20℃~40℃/ At least one
charge cycle per month.
32℉~95℉/ 0℃~35℃ / At least one
charge cycle every six months.

Working Humidity:

5%-95%

Working Altitude:

<2000m

---

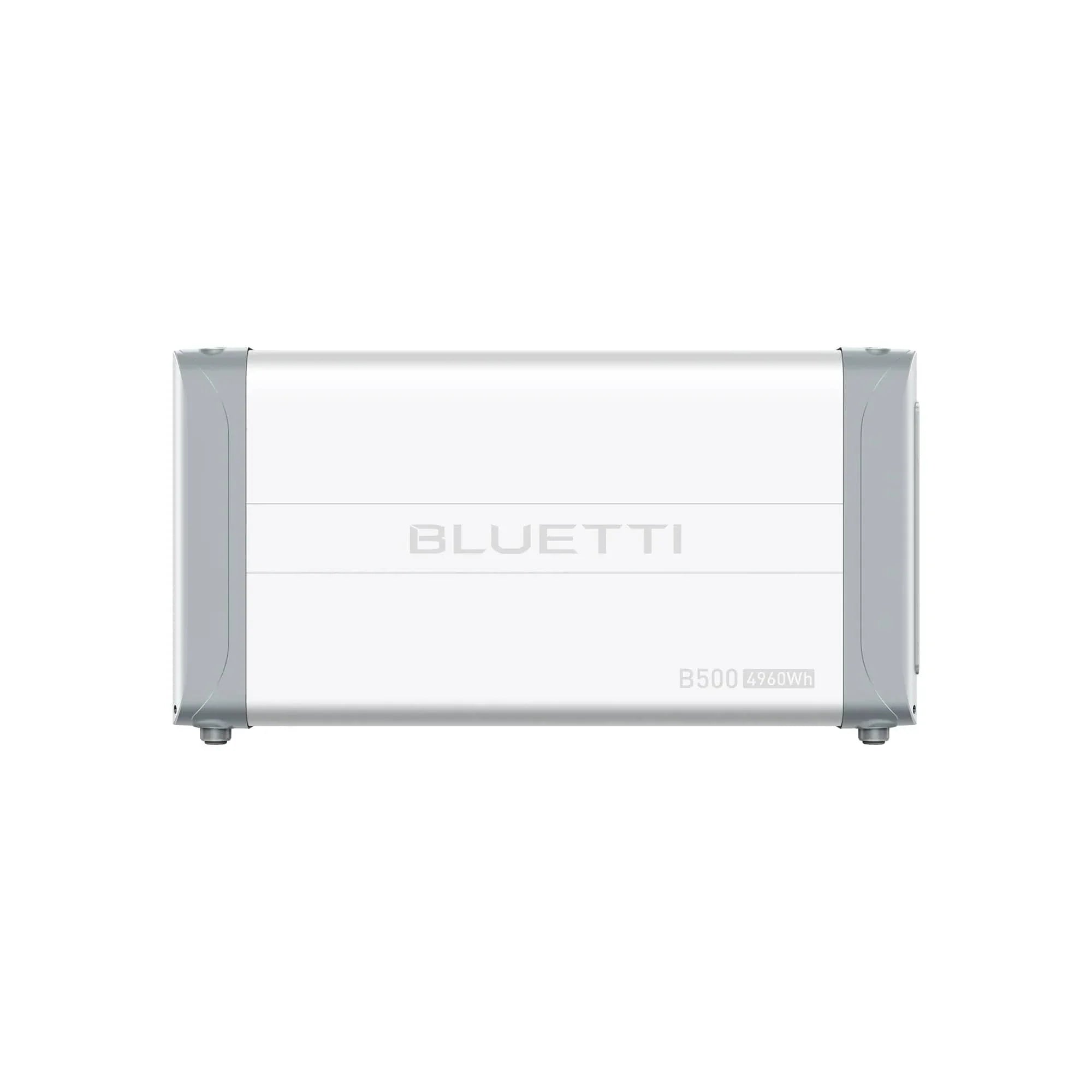

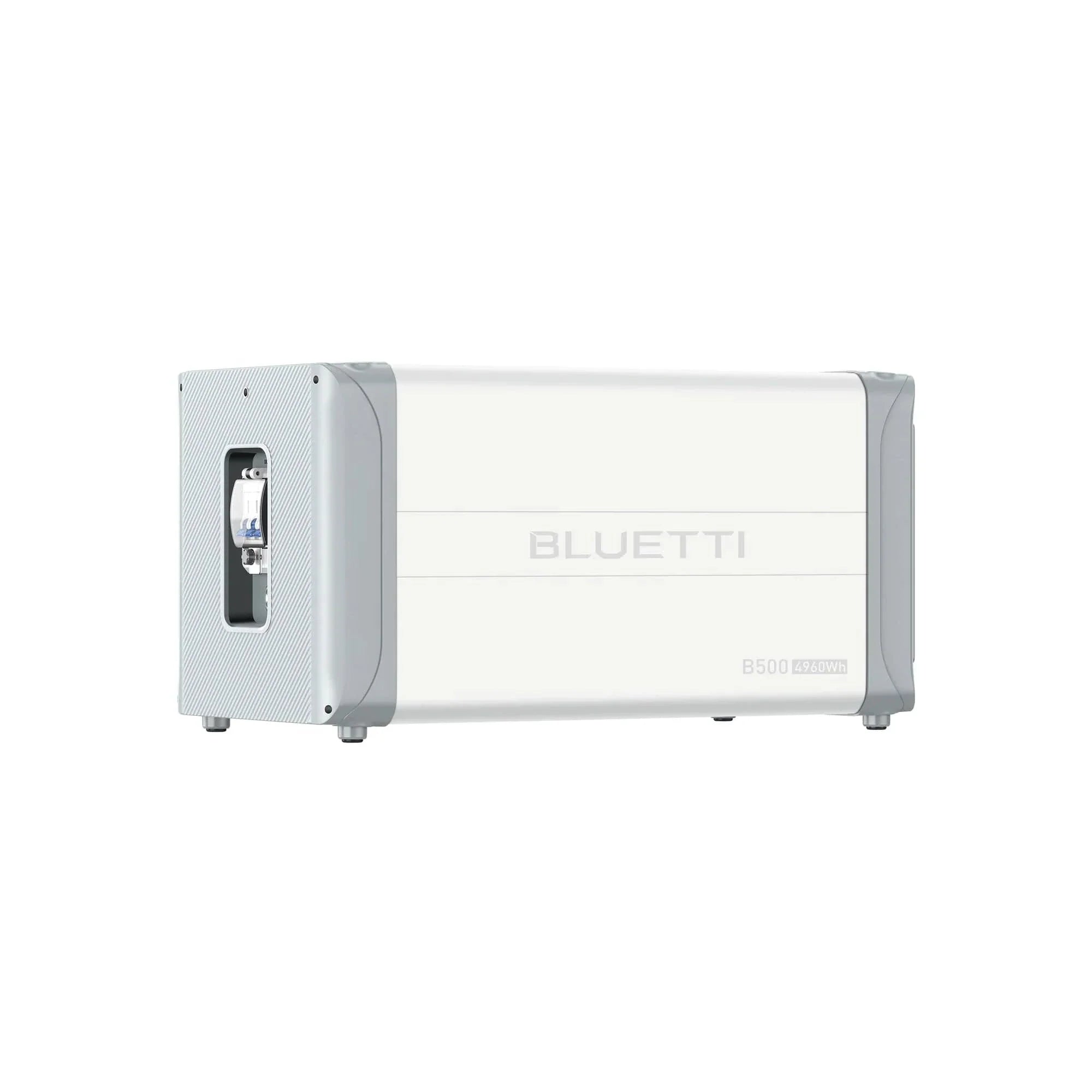

B500 Battery

Battery Type:

Lithium Iron
Phosphate Cells (LiFePO4)

Rated Capacity:

4960Wh

Usable Capacity:

4464Wh

Temperature Adaptive Function:

Yes

Short-circuit Protection:

Yes

---

Certifications:

UL9540A, UL1973, UKCA, RCM, PSE, IP65, ICES, FCC, CE, CB

---

Packaging List

B500 Battery Module:

x 1

Bracket #1:

x 2

Bracket #2:

x 2

M5 hex nut:

x 2

Self-tapping screw M8*40:

x 2

Left cover:

x 1

Right cover:

x 1

M4*8 screw:

x 10

M5*10 screw:

x 4

Red battery expansion cable
(Positive):

x 1

Black battery expansion cable (Negative):

x 1

Communication cable:

x 1

Grounding cable:

x 1

M8*60 expansion bolt:

x 2

M6*12 screw (Grounding cable):

x 2

Spare screws:

x 1

---

Optional Accessories:

1. Electric Meter

Click here for the EP900 Electric Meter

2. Power Shelter

Click here for the EP900 Power Shelter for Outdoor use.
