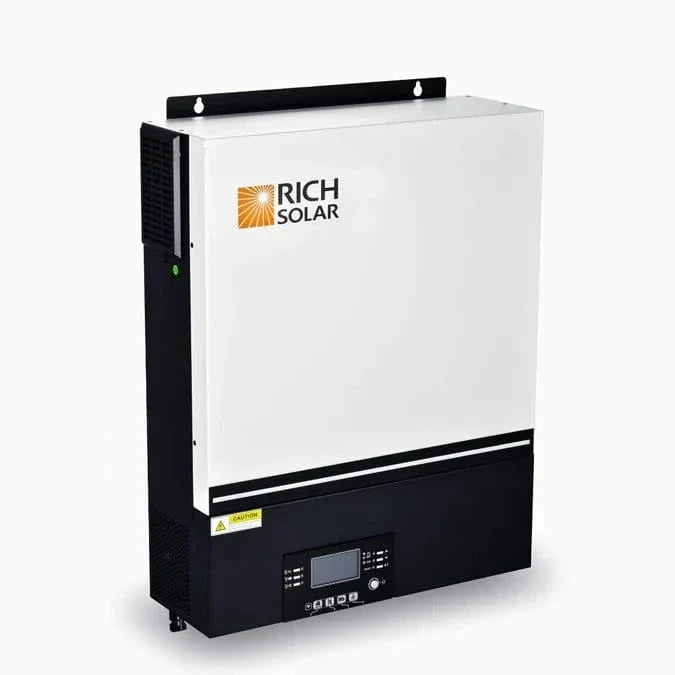

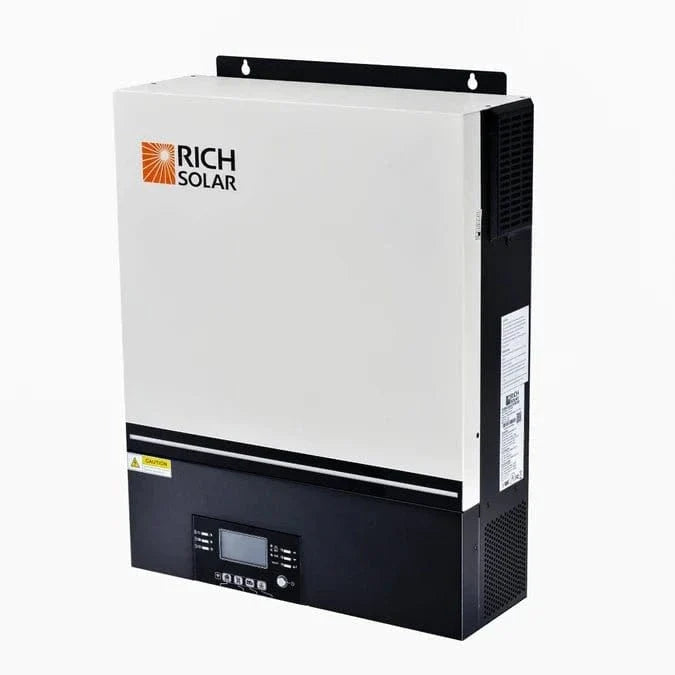

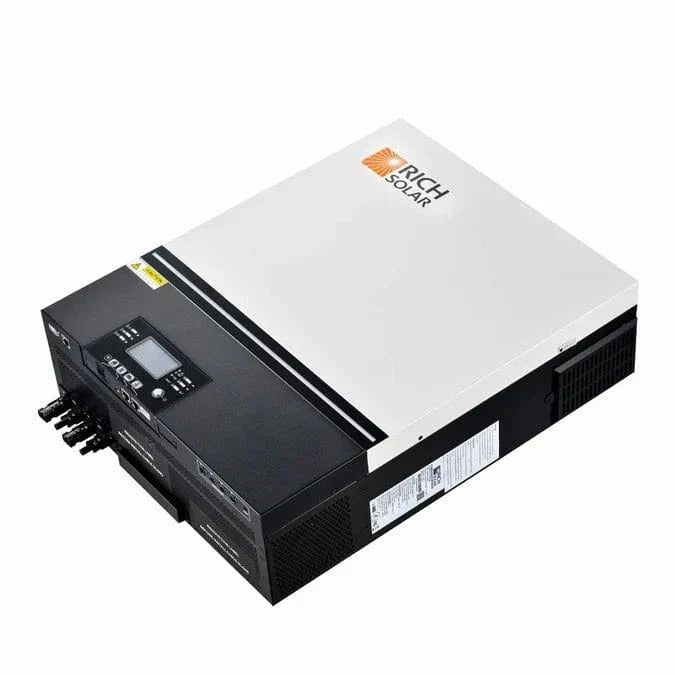

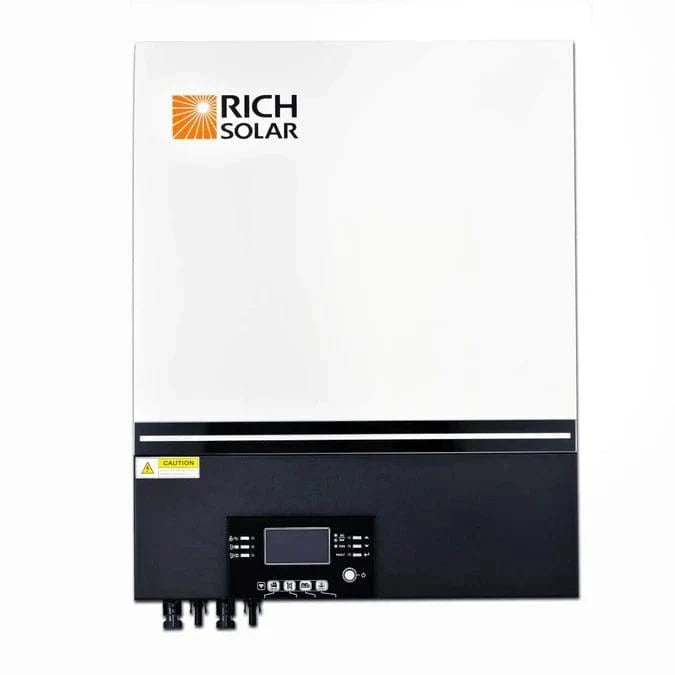

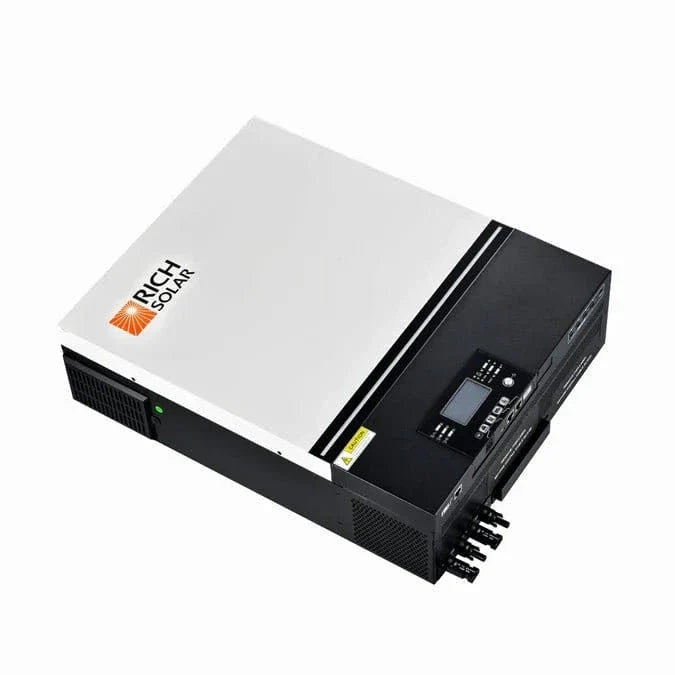

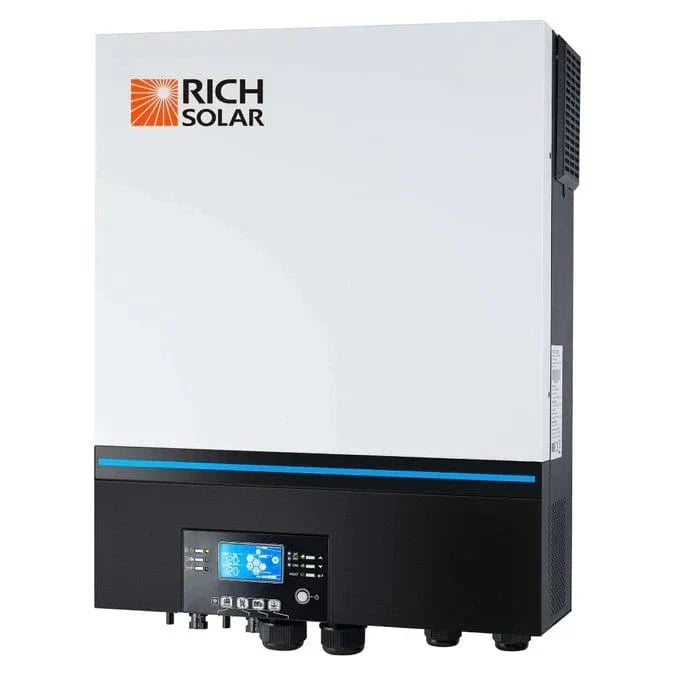

6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter
Sale price
€1.299,99
Regular price €1.899,00
Our 6.5kW 48V off-grid hybrid solar inverter provides clean, reliable energy for your home or business and has the power to revolutionize your life! Enjoy all the benefits of solar energy with none of the downsides. Maximize your savings and minimize your carbon footprint with our innovative and efficient inverter. Go solar today and unlock a brighter future!
Features:
- UL Certification
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Optional DC output for DC fan, LED bulb, router and so on.
- Parallel operation with 6 units
- Dual outputs selected as either programmable output or generator input
How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations
Specifications:
Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units
INPUT
- Voltage: 120 VAC
- Selectable Voltage Range: 90-140 VAC (For Computers)
- 80-140 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto Sensing)
OUTPUT
- AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
- Surge Power: 15000VA
- Efficiency (Peak): 90% ~ 93%
- Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure Sine Wave
- No Load Power Consumption: <70W
- Optional DC Voltage: 12 VDC ± 5%, 100W
- Dual Outputs: Yes
BATTERY
- Battery Voltage: 48 VDC
- Floating Charge Voltage: 54 VDC
- Overcharge Protection: 66 VDC
SOLAR CHARGER & AC CHARGER
- Solar Charger Type: MPPT
- Maximum PV Array Power: 8000W (4000W x 2)
- MPPT Operating Voltage Range: 90 ~ 230 VDC
- Maximum PV Array Open Circuit Voltage: 250 VDC
- Maximum Solar Charge Current: 120A
- Maximum AC Charge Current: 120A
- Maximum Charge Current: 120A
PHYSICAL
- Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
- Net Weight: 40.6 lb
- Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
STANDARD
- Compliance Safety: UL
SPECS MANUAL AND CERTIFICATION Downloads
